Hamlib amplifier data structures. More...

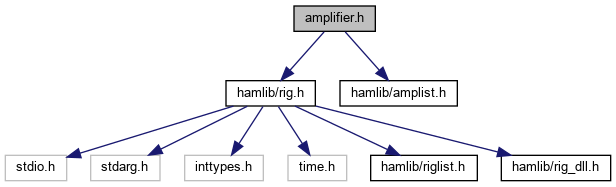

Include dependency graph for amplifier.h:

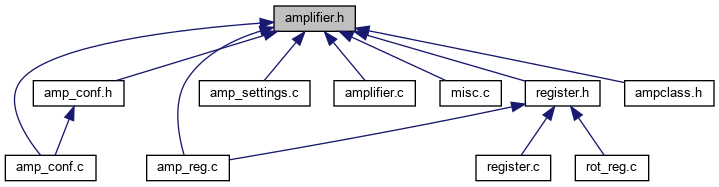

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | amp_state |
| Live data and customized fields. More... | |
| struct | amp |
| This is the master data structure, acting as a handle for the controlled amplifier. More... | |
Macros | |
| #define | NETAMPCTL_RET "RPRT " |
| Token in the netampctl protocol for returning error code. | |
| #define | amp_debug rig_debug |
| Convenience definition for debug level. More... | |
Typedefs | |
| typedef struct amp | AMP |
| Amplifier structure definition (see amp for details). | |
| typedef float | swr_t |
| Type definition for SWR. More... | |
| typedef int | tune_value_t |
| Type definition for tuning values capacitance and resistance. More... | |
Enumerations | |
| enum | amp_type_t { AMP_FLAG_1 = (1 << 1) , AMP_FLAG_2 = (1 << 2) } |
| Amplifier type flags. More... | |
Detailed Description
Hamlib amplifier data structures.
This file contains the data structures and declarations for the Hamlib amplifier API. see the amplifier.c file for more details on the amplifier API.
