Hamlib rig data structures. More...

#include <stdio.h>
#include <stdarg.h>
#include <string.h>
#include <inttypes.h>
#include <time.h>
#include <hamlib/riglist.h>
#include <hamlib/rig_dll.h>

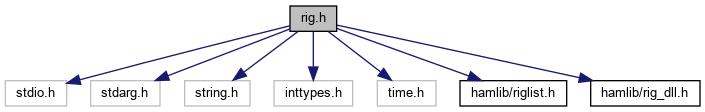

Include dependency graph for rig.h:

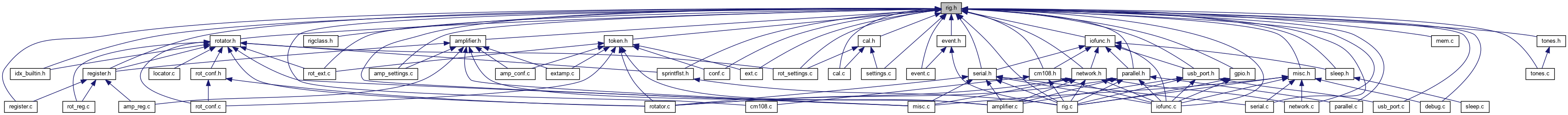

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	confparams
	Configuration parameter structure. More...

union	value_t
	Universal approach for passing values. More...

struct	freq_range_list
	Frequency range. More...

struct	tuning_step_list
	Tuning step definition. More...

struct	filter_list
	Filter definition. More...

struct	ext_list
	Extension attribute definition. More...

struct	channel
	Channel structure. More...

struct	channel_cap
	Channel capability definition. More...

struct	chan_list
	Memory channel list definition. More...

struct	gran
	level/parm granularity definition More...

struct	cal_table
	Calibration table struct. More...

struct	cal_table_float
	Calibration table struct for float values. More...

struct	rig_cache
	Rig cache data. More...

struct	rig_state
	Rig state containing live data and customized fields. More...

struct	rig_callbacks
	Callback functions and args for rig event. More...

struct	s_rig
	The Rig structure. More...

Macros
#define	__FILENAME__ (strrchr(__FILE__, '/') ? strrchr(__FILE__, '/') + 1 : __FILE__)

#define	RIG_IS_SOFT_ERRCODE(errcode)
	Determines if the given error code indicates a "soft" error Soft errors are caused by invalid parameters and software/hardware features and cannot be fixed by retries or by re-initializing hardware. More...

#define	NETRIGCTL_RET "RPRT "
	Token in the netrigctl protocol for returning error code.

#define	CTCSS_LIST_SIZE 60
	CTCSS and DCS type definition. More...

#define	DCS_LIST_SIZE 128

#define	RIG_STATUS_NEW RIG_STATUS_UNTESTED
	Map all deprecated RIG_STATUS_NEW references to RIG_STATUS_UNTESTED for backward compatibility.

#define	PRIfreq ".0f"
	printf(3) format to be used for freq_t type

#define	SCNfreq "lf"
	scanf(3) format to be used for freq_t type

#define	FREQFMT SCNfreq
	printf(3) format to be used for freq_t type

#define	Hz(f) ((freq_t)(f))
	`Macro` to return Hz when f=Hz

#define	kHz(f) ((freq_t)((f)*(freq_t)1000))
	`Macro` to return Hz when f=kHz

#define	MHz(f) ((freq_t)((f)*(freq_t)1000000))
	`Macro` to return Hz when f=MHz

#define	GHz(f) ((freq_t)((f)*(freq_t)1000000000))
	`Macro` to return Hz when f=GHz

#define	s_Hz(f) ((shortfreq_t)(f))
	`Macro` to return short Hz when f=Hz

#define	s_kHz(f) ((shortfreq_t)((f)*(shortfreq_t)1000))
	`Macro` to return short Hz when f=kHz

#define	s_MHz(f) ((shortfreq_t)((f)*(shortfreq_t)1000000))
	`Macro` to return short Hz when f=MHz

#define	s_GHz(f) ((shortfreq_t)((f)*(shortfreq_t)1000000000))
	`Macro` to return short Hz when f=GHz

#define	RIG_FREQ_NONE Hz(0)
	`Frequency` none – used as default value for checking

#define	RIG_VFO_N(n) ((vfo_t)(1u<<(n)))
	'' – used in caps

#define	RIG_VFO_NONE 0
	`VFONone` – vfo unknown

#define	RIG_VFO_A RIG_VFO_N(0)
	`VFOA` – VFO A

#define	RIG_VFO_B RIG_VFO_N(1)
	`VFOB` – VFO B

#define	RIG_VFO_C RIG_VFO_N(2)
	`VFOC` – VFO C

#define	RIG_VFO_SUB_A RIG_VFO_N(21)
	`SubA` – alias for SUB_A

#define	RIG_VFO_SUB_B RIG_VFO_N(22)
	`SubB` – alias for SUB_B

#define	RIG_VFO_SUB_C RIG_VFO_N(3)
	`SubC` – alias for SUB_B

#define	RIG_VFO_MAIN_A RIG_VFO_N(23)
	`MainA` – alias for MAIN_A

#define	RIG_VFO_MAIN_B RIG_VFO_N(24)
	`MainB` – alias for MAIN_B

#define	RIG_VFO_MAIN_C RIG_VFO_N(4)
	`MainC` – alias for MAIN_C

#define	RIG_VFO_SUB RIG_VFO_N(25)
	`Sub` – alias for SUB

#define	RIG_VFO_MAIN RIG_VFO_N(26)
	`Main` – alias for MAIN

#define	RIG_VFO_VFO RIG_VFO_N(27)
	`VFO` – means (last or any)VFO mode, with set_vfo

#define	RIG_VFO_MEM RIG_VFO_N(28)
	`MEM` – means Memory mode, to be used with set_vfo

#define	RIG_VFO_CURR RIG_VFO_N(29)
	`currVFO` – current "tunable channel"/VFO

#define	RIG_VFO_TX_FLAG RIG_VFO_N(30)
	`Flag` to set if VFO can transmit

#define	RIG_VFO_ALL RIG_VFO_N(31)
	`Flag` to set all VFOS

#define	RIG_VFO_TX_VFO(v) ((v)\|RIG_VFO_TX_FLAG)
	`Macro` to tell you if VFO can transmit

#define	RIG_VFO_TX RIG_VFO_TX_VFO(RIG_VFO_CURR)
	`TX` – alias for split tx or uplink, of VFO_CURR

#define	RIG_VFO_RX RIG_VFO_CURR
	`RX` – alias for split rx or downlink

#define	RIG_PASSBAND_NORMAL s_Hz(0)
	Macro for bandpass to be set to normal.

#define	RIG_PASSBAND_NOCHANGE s_Hz(-1)
	Macro for bandpass to be left alone.

#define	RIG_ANT_NONE 0
	Antenna numberNo antenna set yet or unknown.

#define	RIG_ANT_N(n) ((ant_t)1<<(n))
	Antenna conversion macroConvert antenna number to bit mask.

#define	RIG_ANT_1 RIG_ANT_N(0)
	Macro for Ant#1.

#define	RIG_ANT_2 RIG_ANT_N(1)
	Macro for Ant#2.

#define	RIG_ANT_3 RIG_ANT_N(2)
	Macro for Ant#3.

#define	RIG_ANT_4 RIG_ANT_N(3)
	Macro for Ant#4.

#define	RIG_ANT_5 RIG_ANT_N(4)
	Macro for Ant#5.

#define	RIG_ANT_UNKNOWN RIG_ANT_N(30)
	Macro for unknown antenna.

#define	RIG_ANT_CURR RIG_ANT_N(31)
	Antenna is on whatever "current" means.

#define	RIG_ANT_MAX 32
	Maximum antenna#.

#define	RIG_LEVEL_NONE 0

#define	RIG_LEVEL_PREAMP CONSTANT_64BIT_FLAG(0)

#define	RIG_LEVEL_ATT CONSTANT_64BIT_FLAG(1)

#define	RIG_LEVEL_VOXDELAY CONSTANT_64BIT_FLAG(2)

#define	RIG_LEVEL_AF CONSTANT_64BIT_FLAG(3)

#define	RIG_LEVEL_RF CONSTANT_64BIT_FLAG(4)

#define	RIG_LEVEL_SQL CONSTANT_64BIT_FLAG(5)

#define	RIG_LEVEL_IF CONSTANT_64BIT_FLAG(6)

#define	RIG_LEVEL_APF CONSTANT_64BIT_FLAG(7)

#define	RIG_LEVEL_NR CONSTANT_64BIT_FLAG(8)

#define	RIG_LEVEL_PBT_IN CONSTANT_64BIT_FLAG(9)

#define	RIG_LEVEL_PBT_OUT CONSTANT_64BIT_FLAG(10)

#define	RIG_LEVEL_CWPITCH CONSTANT_64BIT_FLAG(11)

#define	RIG_LEVEL_RFPOWER CONSTANT_64BIT_FLAG(12)

#define	RIG_LEVEL_MICGAIN CONSTANT_64BIT_FLAG(13)

#define	RIG_LEVEL_KEYSPD CONSTANT_64BIT_FLAG(14)

#define	RIG_LEVEL_NOTCHF CONSTANT_64BIT_FLAG(15)

#define	RIG_LEVEL_COMP CONSTANT_64BIT_FLAG(16)

#define	RIG_LEVEL_AGC CONSTANT_64BIT_FLAG(17)

#define	RIG_LEVEL_BKINDL CONSTANT_64BIT_FLAG(18)

#define	RIG_LEVEL_BALANCE CONSTANT_64BIT_FLAG(19)

#define	RIG_LEVEL_METER CONSTANT_64BIT_FLAG(20)

#define	RIG_LEVEL_VOXGAIN CONSTANT_64BIT_FLAG(21)

#define	RIG_LEVEL_ANTIVOX CONSTANT_64BIT_FLAG(22)

#define	RIG_LEVEL_SLOPE_LOW CONSTANT_64BIT_FLAG(23)

#define	RIG_LEVEL_SLOPE_HIGH CONSTANT_64BIT_FLAG(24)

#define	RIG_LEVEL_BKIN_DLYMS CONSTANT_64BIT_FLAG(25)

#define	RIG_LEVEL_RAWSTR CONSTANT_64BIT_FLAG(26)

#define	RIG_LEVEL_SWR CONSTANT_64BIT_FLAG(28)

#define	RIG_LEVEL_ALC CONSTANT_64BIT_FLAG(29)

#define	RIG_LEVEL_STRENGTH CONSTANT_64BIT_FLAG(30)

#define	RIG_LEVEL_RFPOWER_METER CONSTANT_64BIT_FLAG(32)

#define	RIG_LEVEL_COMP_METER CONSTANT_64BIT_FLAG(33)

#define	RIG_LEVEL_VD_METER CONSTANT_64BIT_FLAG(34)

#define	RIG_LEVEL_ID_METER CONSTANT_64BIT_FLAG(35)

#define	RIG_LEVEL_NOTCHF_RAW CONSTANT_64BIT_FLAG(36)

#define	RIG_LEVEL_MONITOR_GAIN CONSTANT_64BIT_FLAG(37)

#define	RIG_LEVEL_NB CONSTANT_64BIT_FLAG(38)

#define	RIG_LEVEL_RFPOWER_METER_WATTS CONSTANT_64BIT_FLAG(39)

#define	RIG_LEVEL_40 CONSTANT_64BIT_FLAG(40)

#define	RIG_LEVEL_41 CONSTANT_64BIT_FLAG(41)

#define	RIG_LEVEL_42 CONSTANT_64BIT_FLAG(42)

#define	RIG_LEVEL_43 CONSTANT_64BIT_FLAG(43)

#define	RIG_LEVEL_44 CONSTANT_64BIT_FLAG(44)

#define	RIG_LEVEL_45 CONSTANT_64BIT_FLAG(45)

#define	RIG_LEVEL_46 CONSTANT_64BIT_FLAG(46)

#define	RIG_LEVEL_47 CONSTANT_64BIT_FLAG(47)

#define	RIG_LEVEL_48 CONSTANT_64BIT_FLAG(48)

#define	RIG_LEVEL_49 CONSTANT_64BIT_FLAG(49)

#define	RIG_LEVEL_50 CONSTANT_64BIT_FLAG(50)

#define	RIG_LEVEL_51 CONSTANT_64BIT_FLAG(51)

#define	RIG_LEVEL_52 CONSTANT_64BIT_FLAG(52)

#define	RIG_LEVEL_53 CONSTANT_64BIT_FLAG(53)

#define	RIG_LEVEL_54 CONSTANT_64BIT_FLAG(54)

#define	RIG_LEVEL_55 CONSTANT_64BIT_FLAG(55)

#define	RIG_LEVEL_56 CONSTANT_64BIT_FLAG(56)

#define	RIG_LEVEL_57 CONSTANT_64BIT_FLAG(57)

#define	RIG_LEVEL_58 CONSTANT_64BIT_FLAG(58)

#define	RIG_LEVEL_59 CONSTANT_64BIT_FLAG(59)

#define	RIG_LEVEL_60 CONSTANT_64BIT_FLAG(60)

#define	RIG_LEVEL_61 CONSTANT_64BIT_FLAG(61)

#define	RIG_LEVEL_62 CONSTANT_64BIT_FLAG(62)

#define	RIG_LEVEL_63 CONSTANT_64BIT_FLAG(63)

#define	RIG_SETTING_MAX 64
	Maximum # of rig settings.

#define	RIG_TRN_OFF 0
	Tranceive mode The rig notifies the host of any event, like freq changed, mode changed, etc.Turn it off. More...

#define	RIG_TRN_RIG 1
	Tranceive mode. More...

#define	RIG_TRN_POLL 2

#define	RIG_FUNC_NONE 0
	Rig Function Settings. More...

#define	RIG_FUNC_FAGC CONSTANT_64BIT_FLAG (0)

#define	RIG_FUNC_NB CONSTANT_64BIT_FLAG (1)

#define	RIG_FUNC_COMP CONSTANT_64BIT_FLAG (2)

#define	RIG_FUNC_VOX CONSTANT_64BIT_FLAG (3)

#define	RIG_FUNC_TONE CONSTANT_64BIT_FLAG (4)

#define	RIG_FUNC_TSQL CONSTANT_64BIT_FLAG (5)

#define	RIG_FUNC_SBKIN CONSTANT_64BIT_FLAG (6)

#define	RIG_FUNC_FBKIN CONSTANT_64BIT_FLAG (7)

#define	RIG_FUNC_ANF CONSTANT_64BIT_FLAG (8)

#define	RIG_FUNC_NR CONSTANT_64BIT_FLAG (9)

#define	RIG_FUNC_AIP CONSTANT_64BIT_FLAG (10)

#define	RIG_FUNC_APF CONSTANT_64BIT_FLAG (11)

#define	RIG_FUNC_MON CONSTANT_64BIT_FLAG (12)

#define	RIG_FUNC_MN CONSTANT_64BIT_FLAG (13)

#define	RIG_FUNC_RF CONSTANT_64BIT_FLAG (14)

#define	RIG_FUNC_ARO CONSTANT_64BIT_FLAG (15)

#define	RIG_FUNC_LOCK CONSTANT_64BIT_FLAG (16)

#define	RIG_FUNC_MUTE CONSTANT_64BIT_FLAG (17)

#define	RIG_FUNC_VSC CONSTANT_64BIT_FLAG (18)

#define	RIG_FUNC_REV CONSTANT_64BIT_FLAG (19)

#define	RIG_FUNC_SQL CONSTANT_64BIT_FLAG (20)

#define	RIG_FUNC_ABM CONSTANT_64BIT_FLAG (21)

#define	RIG_FUNC_BC CONSTANT_64BIT_FLAG (22)

#define	RIG_FUNC_MBC CONSTANT_64BIT_FLAG (23)

#define	RIG_FUNC_RIT CONSTANT_64BIT_FLAG (24)

#define	RIG_FUNC_AFC CONSTANT_64BIT_FLAG (25)

#define	RIG_FUNC_SATMODE CONSTANT_64BIT_FLAG (26)

#define	RIG_FUNC_SCOPE CONSTANT_64BIT_FLAG (27)

#define	RIG_FUNC_RESUME CONSTANT_64BIT_FLAG (28)

#define	RIG_FUNC_TBURST CONSTANT_64BIT_FLAG (29)

#define	RIG_FUNC_TUNER CONSTANT_64BIT_FLAG (30)

#define	RIG_FUNC_XIT CONSTANT_64BIT_FLAG (31)

#define	RIG_FUNC_NB2 CONSTANT_64BIT_FLAG (32)

#define	RIG_FUNC_CSQL CONSTANT_64BIT_FLAG (33)

#define	RIG_FUNC_AFLT CONSTANT_64BIT_FLAG (34)

#define	RIG_FUNC_ANL CONSTANT_64BIT_FLAG (35)

#define	RIG_FUNC_BC2 CONSTANT_64BIT_FLAG (36)

#define	RIG_FUNC_DUAL_WATCH CONSTANT_64BIT_FLAG (37)

#define	RIG_FUNC_DIVERSITY CONSTANT_64BIT_FLAG (38)

#define	RIG_FUNC_DSQL CONSTANT_64BIT_FLAG (39)

#define	RIG_FUNC_SCEN CONSTANT_64BIT_FLAG (40)

#define	RIG_FUNC_SLICE CONSTANT_64BIT_FLAG (41)

#define	RIG_FUNC_BIT42 CONSTANT_64BIT_FLAG (42)

#define	RIG_FUNC_BIT43 CONSTANT_64BIT_FLAG (43)

#define	RIG_FUNC_BIT44 CONSTANT_64BIT_FLAG (44)

#define	RIG_FUNC_BIT45 CONSTANT_64BIT_FLAG (45)

#define	RIG_FUNC_BIT46 CONSTANT_64BIT_FLAG (46)

#define	RIG_FUNC_BIT47 CONSTANT_64BIT_FLAG (47)

#define	RIG_FUNC_BIT48 CONSTANT_64BIT_FLAG (48)

#define	RIG_FUNC_BIT49 CONSTANT_64BIT_FLAG (49)

#define	RIG_FUNC_BIT50 CONSTANT_64BIT_FLAG (50)

#define	RIG_FUNC_BIT51 CONSTANT_64BIT_FLAG (51)

#define	RIG_FUNC_BIT52 CONSTANT_64BIT_FLAG (52)

#define	RIG_FUNC_BIT53 CONSTANT_64BIT_FLAG (53)

#define	RIG_FUNC_BIT54 CONSTANT_64BIT_FLAG (54)

#define	RIG_FUNC_BIT55 CONSTANT_64BIT_FLAG (55)

#define	RIG_FUNC_BIT56 CONSTANT_64BIT_FLAG (56)

#define	RIG_FUNC_BIT57 CONSTANT_64BIT_FLAG (57)

#define	RIG_FUNC_BIT58 CONSTANT_64BIT_FLAG (58)

#define	RIG_FUNC_BIT59 CONSTANT_64BIT_FLAG (59)

#define	RIG_FUNC_BIT60 CONSTANT_64BIT_FLAG (60)

#define	RIG_FUNC_BIT61 CONSTANT_64BIT_FLAG (61)

#define	RIG_FUNC_BIT62 CONSTANT_64BIT_FLAG (62)

#define	RIG_FUNC_BIT63 CONSTANT_64BIT_FLAG (63)

#define	mW(p) ((int)(p))
	power unit macrosConverts a power level integer to milliwatts. This is limited to 2 megawatts on 32 bit systems.

#define	Watts(p) ((int)((p)*1000))
	power unit macros More...

#define	W(p) Watts(p)
	power unit macros More...

#define	RIG_MODE_NONE 0

#define	RIG_MODE_AM CONSTANT_64BIT_FLAG (0)

#define	RIG_MODE_CW CONSTANT_64BIT_FLAG (1)

#define	RIG_MODE_USB CONSTANT_64BIT_FLAG (2)

#define	RIG_MODE_LSB CONSTANT_64BIT_FLAG (3)

#define	RIG_MODE_RTTY CONSTANT_64BIT_FLAG (4)

#define	RIG_MODE_FM CONSTANT_64BIT_FLAG (5)

#define	RIG_MODE_WFM CONSTANT_64BIT_FLAG (6)

#define	RIG_MODE_CWR CONSTANT_64BIT_FLAG (7)

#define	RIG_MODE_RTTYR CONSTANT_64BIT_FLAG (8)

#define	RIG_MODE_AMS CONSTANT_64BIT_FLAG (9)

#define	RIG_MODE_PKTLSB CONSTANT_64BIT_FLAG (10)

#define	RIG_MODE_PKTUSB CONSTANT_64BIT_FLAG (11)

#define	RIG_MODE_PKTFM CONSTANT_64BIT_FLAG (12)

#define	RIG_MODE_ECSSUSB CONSTANT_64BIT_FLAG (13)

#define	RIG_MODE_ECSSLSB CONSTANT_64BIT_FLAG (14)

#define	RIG_MODE_FAX CONSTANT_64BIT_FLAG (15)

#define	RIG_MODE_SAM CONSTANT_64BIT_FLAG (16)

#define	RIG_MODE_SAL CONSTANT_64BIT_FLAG (17)

#define	RIG_MODE_SAH CONSTANT_64BIT_FLAG (18)

#define	RIG_MODE_DSB CONSTANT_64BIT_FLAG (19)

#define	RIG_MODE_FMN CONSTANT_64BIT_FLAG (21)

#define	RIG_MODE_PKTAM CONSTANT_64BIT_FLAG (22)

#define	RIG_MODE_P25 CONSTANT_64BIT_FLAG (23)

#define	RIG_MODE_DSTAR CONSTANT_64BIT_FLAG (24)

#define	RIG_MODE_DPMR CONSTANT_64BIT_FLAG (25)

#define	RIG_MODE_NXDNVN CONSTANT_64BIT_FLAG (26)

#define	RIG_MODE_NXDN_N CONSTANT_64BIT_FLAG (27)

#define	RIG_MODE_DCR CONSTANT_64BIT_FLAG (28)

#define	RIG_MODE_AMN CONSTANT_64BIT_FLAG (29)

#define	RIG_MODE_PSK CONSTANT_64BIT_FLAG (30)

#define	RIG_MODE_PSKR CONSTANT_64BIT_FLAG (31)

#define	RIG_MODE_DD CONSTANT_64BIT_FLAG (32)

#define	RIG_MODE_C4FM CONSTANT_64BIT_FLAG (33)

#define	RIG_MODE_PKTFMN CONSTANT_64BIT_FLAG (34)

#define	RIG_MODE_SPEC CONSTANT_64BIT_FLAG (35)

#define	RIG_MODE_BIT36 CONSTANT_64BIT_FLAG (36)

#define	RIG_MODE_BIT37 CONSTANT_64BIT_FLAG (37)

#define	RIG_MODE_BIT38 CONSTANT_64BIT_FLAG (38)

#define	RIG_MODE_BIT39 CONSTANT_64BIT_FLAG (39)

#define	RIG_MODE_BIT40 CONSTANT_64BIT_FLAG (40)

#define	RIG_MODE_BIT41 CONSTANT_64BIT_FLAG (41)

#define	RIG_MODE_BIT42 CONSTANT_64BIT_FLAG (42)

#define	RIG_MODE_BIT43 CONSTANT_64BIT_FLAG (43)

#define	RIG_MODE_BIT44 CONSTANT_64BIT_FLAG (44)

#define	RIG_MODE_BIT45 CONSTANT_64BIT_FLAG (45)

#define	RIG_MODE_BIT46 CONSTANT_64BIT_FLAG (46)

#define	RIG_MODE_BIT47 CONSTANT_64BIT_FLAG (47)

#define	RIG_MODE_BIT48 CONSTANT_64BIT_FLAG (48)

#define	RIG_MODE_BIT49 CONSTANT_64BIT_FLAG (49)

#define	RIG_MODE_BIT50 CONSTANT_64BIT_FLAG (50)

#define	RIG_MODE_BIT51 CONSTANT_64BIT_FLAG (51)

#define	RIG_MODE_BIT52 CONSTANT_64BIT_FLAG (52)

#define	RIG_MODE_BIT53 CONSTANT_64BIT_FLAG (53)

#define	RIG_MODE_BIT54 CONSTANT_64BIT_FLAG (54)

#define	RIG_MODE_BIT55 CONSTANT_64BIT_FLAG (55)

#define	RIG_MODE_BIT56 CONSTANT_64BIT_FLAG (56)

#define	RIG_MODE_BIT57 CONSTANT_64BIT_FLAG (57)

#define	RIG_MODE_BIT58 CONSTANT_64BIT_FLAG (58)

#define	RIG_MODE_BIT59 CONSTANT_64BIT_FLAG (59)

#define	RIG_MODE_BIT60 CONSTANT_64BIT_FLAG (60)

#define	RIG_MODE_BIT61 CONSTANT_64BIT_FLAG (61)

#define	RIG_MODE_BIT62 CONSTANT_64BIT_FLAG (62)

#define	RIG_MODE_TESTS_MAX CONSTANT_64BIT_FLAG (63)

#define	RIG_MODE_SSB (RIG_MODE_USB\|RIG_MODE_LSB)
	macro for backends, not to be used by rig_set_mode et al.

#define	RIG_MODE_ECSS (RIG_MODE_ECSSUSB\|RIG_MODE_ECSSLSB)
	macro for backends, not to be used by rig_set_mode et al.

#define	RIG_CHFLAG_NONE 0
	Empty channel_t.flags field.

#define	RIG_CHFLAG_SKIP (1<<0)
	skip memory channel during scan (lock out), channel_t.flags

#define	RIG_CHFLAG_DATA (1<<1)
	DATA port mode flag.

#define	RIG_CHFLAG_PSKIP (1<<2)
	programmed skip (PSKIP) memory channel during scan (lock out), channel_t.flags

#define	RIG_MEM_CAPS_ALL -1
	Special memory channel value to tell rig_lookup_mem_caps() to retrieve all the ranges.

#define	HAMLIB_ELAPSED_GET 0

#define	HAMLIB_ELAPSED_SET 1

#define	HAMLIB_ELAPSED_INVALIDATE 2

Typedefs
typedef struct s_rig	RIG
	Rig structure definition (see rig for details).

typedef unsigned int	tone_t

typedef enum rig_port_e	rig_port_t
	Port type.

typedef double	freq_t
	Frequency type,. More...

typedef signed long	shortfreq_t
	Short frequency type. More...

typedef unsigned int	vfo_t
	VFO definition. More...

typedef shortfreq_t	pbwidth_t

typedef enum dcd_e	dcd_t
	DCD status.

typedef long	token_t
	configuration token

typedef unsigned int	ant_t
	Antenna typedef.

typedef uint64_t	rig_level_e
	Rig Level Settings. More...

typedef uint64_t	setting_t
	Setting. More...

typedef uint64_t	rmode_t
	Radio mode. More...

typedef struct freq_range_list	freq_range_t
	Frequency range. More...

typedef struct channel	channel_t
	Channel structure typedef.

typedef struct channel_cap	channel_cap_t
	Channel cap.

typedef struct chan_list	chan_t
	chan_t type

typedef struct gran	gran_t
	gran_t type

typedef struct cal_table	cal_table_t
	calibration table type More...

typedef struct cal_table_float	cal_table_float_t
	calibration table type for float values More...

typedef hamlib_port_t	port_t
	Rig data structure. More...

Enumerations
enum	rig_errcode_e { RIG_OK = 0 , RIG_EINVAL , RIG_ECONF , RIG_ENOMEM , RIG_ENIMPL , RIG_ETIMEOUT , RIG_EIO , RIG_EINTERNAL , RIG_EPROTO , RIG_ERJCTED , RIG_ETRUNC , RIG_ENAVAIL , RIG_ENTARGET , RIG_BUSERROR , RIG_BUSBUSY , RIG_EARG , RIG_EVFO , RIG_EDOM }
	Hamlib error codes Error code definition that can be returned by the Hamlib functions. Unless stated otherwise, Hamlib functions return the negative value of rig_errcode_e definitions in case of error, or 0 when successful. More...

enum	rig_debug_level_e { RIG_DEBUG_NONE = 0 , RIG_DEBUG_BUG , RIG_DEBUG_ERR , RIG_DEBUG_WARN , RIG_DEBUG_VERBOSE , RIG_DEBUG_TRACE , RIG_DEBUG_CACHE }
	Hamlib debug levels. More...

enum	rig_port_e { RIG_PORT_NONE = 0 , RIG_PORT_SERIAL , RIG_PORT_NETWORK , RIG_PORT_DEVICE , RIG_PORT_PACKET , RIG_PORT_DTMF , RIG_PORT_ULTRA , RIG_PORT_RPC , RIG_PORT_PARALLEL , RIG_PORT_USB , RIG_PORT_UDP_NETWORK , RIG_PORT_CM108 , RIG_PORT_GPIO , RIG_PORT_GPION }
	Port type. More...

enum	serial_parity_e { RIG_PARITY_NONE = 0 , RIG_PARITY_ODD , RIG_PARITY_EVEN , RIG_PARITY_MARK , RIG_PARITY_SPACE }
	Serial parity. More...

enum	serial_handshake_e { RIG_HANDSHAKE_NONE = 0 , RIG_HANDSHAKE_XONXOFF , RIG_HANDSHAKE_HARDWARE }
	Serial handshake. More...

enum	serial_control_state_e { RIG_SIGNAL_UNSET = 0 , RIG_SIGNAL_ON , RIG_SIGNAL_OFF }
	Serial control state. More...

enum	rig_type_t { RIG_FLAG_RECEIVER = (1 << 1) , RIG_FLAG_TRANSMITTER = (1 << 2) , RIG_FLAG_SCANNER = (1 << 3) , RIG_FLAG_MOBILE = (1 << 4) , RIG_FLAG_HANDHELD = (1 << 5) , RIG_FLAG_COMPUTER = (1 << 6) , RIG_FLAG_TRUNKING = (1 << 7) , RIG_FLAG_APRS = (1 << 8) , RIG_FLAG_TNC = (1 << 9) , RIG_FLAG_DXCLUSTER = (1 << 10) , RIG_FLAG_TUNER = (1 << 11) }
	Rig type flags. More...

enum	rig_status_e { RIG_STATUS_ALPHA = 0 , RIG_STATUS_UNTESTED , RIG_STATUS_BETA , RIG_STATUS_STABLE , RIG_STATUS_BUGGY }
	Development status of the backend. More...

enum	rptr_shift_t { RIG_RPT_SHIFT_NONE = 0 , RIG_RPT_SHIFT_MINUS , RIG_RPT_SHIFT_PLUS }
	Repeater shift type. More...

enum	split_t { RIG_SPLIT_OFF = 0 , RIG_SPLIT_ON }
	Split mode. More...

enum	dcd_e { RIG_DCD_OFF = 0 , RIG_DCD_ON }
	DCD status. More...

enum	dcd_type_t { RIG_DCD_NONE = 0 , RIG_DCD_RIG , RIG_DCD_SERIAL_DSR , RIG_DCD_SERIAL_CTS , RIG_DCD_SERIAL_CAR , RIG_DCD_PARALLEL , RIG_DCD_CM108 , RIG_DCD_GPIO , RIG_DCD_GPION }
	DCD type. More...

enum	ptt_t { RIG_PTT_OFF = 0 , RIG_PTT_ON , RIG_PTT_ON_MIC , RIG_PTT_ON_DATA }
	PTT status. More...

enum	ptt_type_t { RIG_PTT_NONE = 0 , RIG_PTT_RIG , RIG_PTT_SERIAL_DTR , RIG_PTT_SERIAL_RTS , RIG_PTT_PARALLEL , RIG_PTT_RIG_MICDATA , RIG_PTT_CM108 , RIG_PTT_GPIO , RIG_PTT_GPION }
	PTT type. More...

enum	powerstat_t { RIG_POWER_OFF = 0 , RIG_POWER_ON = (1 << 0) , RIG_POWER_STANDBY = (1 << 1) , RIG_POWER_OPERATE = (1 << 2) , RIG_POWER_UNKNOWN = (1 << 3) }
	Radio power state. More...

enum	reset_t { RIG_RESET_NONE = 0 , RIG_RESET_SOFT = (1 << 0) , RIG_RESET_VFO = (1 << 1) , RIG_RESET_MCALL = (1 << 2) , RIG_RESET_MASTER = (1 << 3) }
	Reset operation. More...

enum	vfo_op_t { RIG_OP_NONE = 0 , RIG_OP_CPY = (1 << 0) , RIG_OP_XCHG = (1 << 1) , RIG_OP_FROM_VFO = (1 << 2) , RIG_OP_TO_VFO = (1 << 3) , RIG_OP_MCL = (1 << 4) , RIG_OP_UP = (1 << 5) , RIG_OP_DOWN = (1 << 6) , RIG_OP_BAND_UP = (1 << 7) , RIG_OP_BAND_DOWN = (1 << 8) , RIG_OP_LEFT = (1 << 9) , RIG_OP_RIGHT = (1 << 10) , RIG_OP_TUNE = (1 << 11) , RIG_OP_TOGGLE = (1 << 12) }
	VFO operation. More...

enum	scan_t { RIG_SCAN_NONE = 0 , RIG_SCAN_MEM = (1 << 0) , RIG_SCAN_SLCT = (1 << 1) , RIG_SCAN_PRIO = (1 << 2) , RIG_SCAN_PROG = (1 << 3) , RIG_SCAN_DELTA = (1 << 4) , RIG_SCAN_VFO = (1 << 5) , RIG_SCAN_PLT = (1 << 6) , RIG_SCAN_STOP = (1 << 7) }
	Rig Scan operation. More...

enum	rig_conf_e { RIG_CONF_STRING , RIG_CONF_COMBO , RIG_CONF_NUMERIC , RIG_CONF_CHECKBUTTON , RIG_CONF_BUTTON , RIG_CONF_BINARY }
	parameter types More...

enum	ann_t { RIG_ANN_NONE = 0 , RIG_ANN_OFF = RIG_ANN_NONE , RIG_ANN_FREQ = (1 << 0) , RIG_ANN_RXMODE = (1 << 1) , RIG_ANN_CW = (1 << 2) , RIG_ANN_ENG = (1 << 3) , RIG_ANN_JAP = (1 << 4) }
	Announce. More...

enum	agc_level_e { RIG_AGC_OFF = 0 , RIG_AGC_SUPERFAST , RIG_AGC_FAST , RIG_AGC_SLOW , RIG_AGC_USER , RIG_AGC_MEDIUM , RIG_AGC_AUTO }
	AGC delay settings. More...

enum	meter_level_e { RIG_METER_NONE = 0 , RIG_METER_SWR = (1 << 0) , RIG_METER_COMP = (1 << 1) , RIG_METER_ALC = (1 << 2) , RIG_METER_IC = (1 << 3) , RIG_METER_DB = (1 << 4) , RIG_METER_PO = (1 << 5) , RIG_METER_VDD = (1 << 6) , RIG_METER_TEMP = (1 << 7) }
	Level display meters.

enum	rig_parm_e { RIG_PARM_NONE = 0 , RIG_PARM_ANN = (1 << 0) , RIG_PARM_APO = (1 << 1) , RIG_PARM_BACKLIGHT = (1 << 2) , RIG_PARM_BEEP = (1 << 4) , RIG_PARM_TIME = (1 << 5) , RIG_PARM_BAT = (1 << 6) , RIG_PARM_KEYLIGHT = (1 << 7) , RIG_PARM_SCREENSAVER = (1 << 8) }
	Rig Parameters. More...

enum	chan_type_t { RIG_MTYPE_NONE = 0 , RIG_MTYPE_MEM , RIG_MTYPE_EDGE , RIG_MTYPE_CALL , RIG_MTYPE_MEMOPAD , RIG_MTYPE_SAT , RIG_MTYPE_BAND , RIG_MTYPE_PRIO }
	Memory channel type definition. More...

enum	hamlib_cache_t { HAMLIB_CACHE_ALL , HAMLIB_CACHE_VFO , HAMLIB_CACHE_FREQ , HAMLIB_CACHE_MODE , HAMLIB_CACHE_PTT , HAMLIB_CACHE_SPLIT , HAMLIB_CACHE_WIDTH }

enum	twiddle_state_t { TWIDDLE_OFF , TWIDDLE_ON }

Detailed Description

Hamlib rig data structures.

This file contains the data structures and definitions for the Hamlib rig API. see the rig.c file for more details on the rig API.

Data Structures

Macros

Typedefs

Enumerations

Detailed Description
