Hamlib
4.3
|
Amplifier extension parameters and levels interface. More...

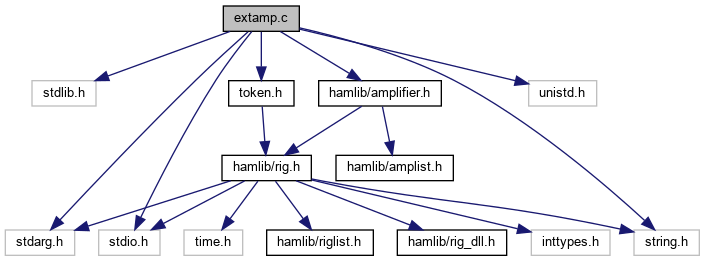

#include <stdlib.h>
#include <stdarg.h>
#include <stdio.h>
#include <string.h>
#include <unistd.h>
#include <hamlib/amplifier.h>
#include "token.h"
Functions | |
int | amp_ext_level_foreach (AMP *amp, int(*cfunc)(AMP *, const struct confparams *, amp_ptr_t), amp_ptr_t data) |
Executes cfunc on all the elements stored in the amp_caps::extlevels extension levels table. More... | |
int | amp_ext_parm_foreach (AMP *amp, int(*cfunc)(AMP *, const struct confparams *, amp_ptr_t), amp_ptr_t data) |
Executes cfunc on all the elements stored in the amp_caps::extparms extension parameters table. More... | |
const struct confparams * | amp_ext_lookup (AMP *amp, const char *name) |
Lookup an extension levels or parameters token by its name and return a pointer to the containing confparams structure member. More... | |
const struct confparams * | amp_ext_lookup_tok (AMP *amp, token_t token) |
Search for an extension levels or parameters token by its constant value and return a pointer to the confparams structure member. More... | |
token_t | amp_ext_token_lookup (AMP *amp, const char *name) |
Simple search returning the extension token ID associated with name. More... | |
Amplifier extension parameters and levels interface.
An open-ended set of extension parameters and levels are available for each amplifier, as provided in the amp_caps::extparms and amp_caps::extlevels lists. These provide a way to work with amplifier-specific functions that don't fit into the basic "virtual amplifier" of Hamlib. See amplifiers/elecraft/kpa.c
for an example.
