Token definitions. More...

#include <hamlib/rig.h>

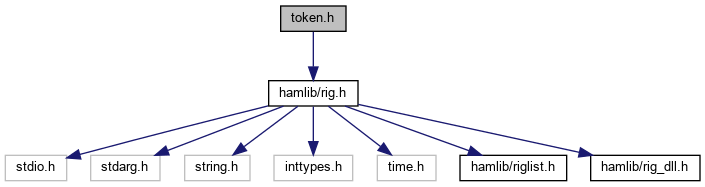

Include dependency graph for token.h:

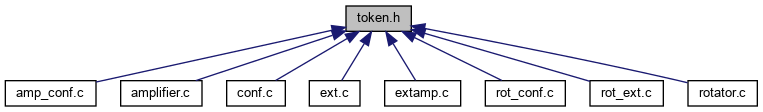

This graph shows which files directly or indirectly include this file:

Macros
#define	TOKEN_BACKEND(t) (t)
	Create a backend token, t.

#define	TOKEN_FRONTEND(t) ((t)\|(1<<30))
	Create a frontend token, t.

#define	IS_TOKEN_FRONTEND(t) ((t)&(1<<30))
	Test for token - frontend?

#define	TOK_FRONTEND_NONE TOKEN_FRONTEND(0)
	Null frontend token.

#define	TOK_BACKEND_NONE TOKEN_BACKEND(0)
	Null backend token.

#define	TOK_PATHNAME TOKEN_FRONTEND(10)
	Pathname is device for rig control, e.g. /dev/ttyS0.

#define	TOK_WRITE_DELAY TOKEN_FRONTEND(12)
	Delay before serial output (units?)

#define	TOK_POST_WRITE_DELAY TOKEN_FRONTEND(13)
	Delay after serial output (units?)

#define	TOK_TIMEOUT TOKEN_FRONTEND(14)
	Timeout delay (units?)

#define	TOK_RETRY TOKEN_FRONTEND(15)
	Number of retries permitted.

#define	TOK_SERIAL_SPEED TOKEN_FRONTEND(20)
	Serial speed - "baud rate".

#define	TOK_DATA_BITS TOKEN_FRONTEND(21)
	No. data bits per serial character.

#define	TOK_STOP_BITS TOKEN_FRONTEND(22)
	No. stop bits per serial character.

#define	TOK_PARITY TOKEN_FRONTEND(23)
	Serial parity (format?)

#define	TOK_HANDSHAKE TOKEN_FRONTEND(24)
	Serial Handshake (format?)

#define	TOK_RTS_STATE TOKEN_FRONTEND(25)
	Serial Req. To Send status.

#define	TOK_DTR_STATE TOKEN_FRONTEND(26)
	Serial Data Terminal Ready status.

#define	TOK_PTT_TYPE TOKEN_FRONTEND(30)
	PTT type override.

#define	TOK_PTT_PATHNAME TOKEN_FRONTEND(31)
	PTT pathname override.

#define	TOK_DCD_TYPE TOKEN_FRONTEND(32)
	DCD type override.

#define	TOK_DCD_PATHNAME TOKEN_FRONTEND(33)
	DCD pathname override.

#define	TOK_PTT_BITNUM TOKEN_FRONTEND(34)
	CM108 GPIO bit number for PTT.

#define	TOK_PTT_SHARE TOKEN_FRONTEND(35)
	PTT share with other applications.

#define	TOK_FLUSHX TOKEN_FRONTEND(36)
	PTT share with other applications.

#define	TOK_VFO_COMP TOKEN_FRONTEND(110)
	rig: ??

#define	TOK_POLL_INTERVAL TOKEN_FRONTEND(111)
	rig: polling interval (units?)

#define	TOK_LO_FREQ TOKEN_FRONTEND(112)
	rig: lo frequency of any transverters

#define	TOK_RANGE_SELECTED TOKEN_FRONTEND(121)
	rig: Range index 1-5

#define	TOK_RANGE_NAME TOKEN_FRONTEND(122)
	rig: Range Name

#define	TOK_CACHE_TIMEOUT TOKEN_FRONTEND(123)
	rig: Cache timeout

#define	TOK_AUTO_POWER_ON TOKEN_FRONTEND(124)
	rig: Auto power on rig_open when supported

#define	TOK_AUTO_POWER_OFF TOKEN_FRONTEND(125)
	rig: Auto power off rig_close when supported

#define	TOK_AUTO_DISABLE_SCREENSAVER TOKEN_FRONTEND(126)
	rig: Auto disable screensaver

#define	TOK_DISABLE_YAESU_BANDSELECT TOKEN_FRONTEND(127)
	rig: Disable Yaesu band select logic

#define	TOK_TWIDDLE_TIMEOUT TOKEN_FRONTEND(128)
	rig: Supporess get_freq on VFOB for satellite RIT tuning

#define	TOK_TWIDDLE_RIT TOKEN_FRONTEND(129)
	rig: Supporess get_freq on VFOB for satellite RIT tuning

#define	TOK_MIN_AZ TOKEN_FRONTEND(110)
	rot: Minimum Azimuth

#define	TOK_MAX_AZ TOKEN_FRONTEND(111)
	rot: Maximum Azimuth

#define	TOK_MIN_EL TOKEN_FRONTEND(112)
	rot: Minimum Elevation

#define	TOK_MAX_EL TOKEN_FRONTEND(113)
	rot: Maximum Elevation

#define	TOK_SOUTH_ZERO TOKEN_FRONTEND(114)
	rot: South is zero degrees

Detailed Description

Token definitions.
