rig.h File Reference
Rig (transceiver) API

Hamlib rig data structures. More...

#include <stdio.h>
#include <stdarg.h>
#include <inttypes.h>
#include <time.h>
#include <hamlib/riglist.h>
#include <hamlib/rig_dll.h>

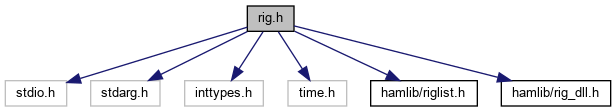

Include dependency graph for rig.h:

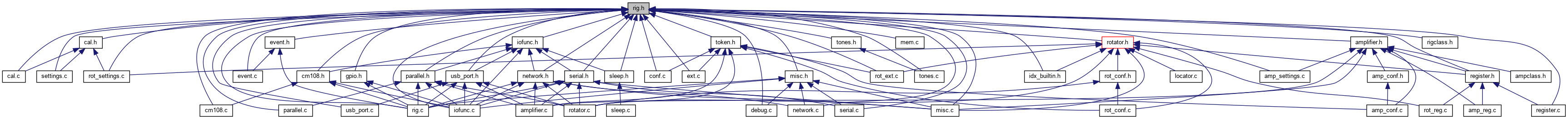

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  confparams
 Configuration parameter structure. More...

union  value_t
 Universal approach for passing values. More...

struct  freq_range_list
 Frequency range. More...

struct  tuning_step_list
 Tuning step definition. More...

struct  filter_list
 Filter definition. More...

struct  ext_list
 Extension attribute definition. More...

struct  channel
 Channel structure. More...

struct  channel_cap
 Channel capability definition. More...

struct  chan_list
 Memory channel list definition. More...

struct  gran
 level/parm granularity definition More...

struct  cal_table
 Calibration table struct. More...

struct  cal_table_float
 Calibration table struct for float values. More...

struct  rig_cache
 Rig cache data. More...

struct  rig_state
 Rig state containing live data and customized fields. More...

struct  rig_callbacks
 Callback functions and args for rig event. More...

struct  s_rig
 The Rig structure. More...


Macros

#define __FILENAME__   (strrchr(__FILE__, '/') ? strrchr(__FILE__, '/') + 1 : __FILE__)

#define NETRIGCTL_RET   "RPRT "
 Token in the netrigctl protocol for returning error code.

#define RIG_STATUS_NEW   RIG_STATUS_UNTESTED
 Map all deprecated RIG_STATUS_NEW references to RIG_STATUS_UNTESTED for backward compatibility.

#define PRIfreq   "f"
 printf(3) format to be used for freq_t type

#define SCNfreq   "lf"
 scanf(3) format to be used for freq_t type

#define FREQFMT   SCNfreq
 printf(3) format to be used for freq_t type

#define Hz(f)   ((freq_t)(f))
 Macro to return Hz when f=Hz


#define kHz(f)   ((freq_t)((f)*(freq_t)1000))
 Macro to return Hz when f=kHz


#define MHz(f)   ((freq_t)((f)*(freq_t)1000000))
 Macro to return Hz when f=MHz


#define GHz(f)   ((freq_t)((f)*(freq_t)1000000000))
 Macro to return Hz when f=GHz


#define s_Hz(f)   ((shortfreq_t)(f))
 Macro to return short Hz when f=Hz


#define s_kHz(f)   ((shortfreq_t)((f)*(shortfreq_t)1000))
 Macro to return short Hz when f=kHz


#define s_MHz(f)   ((shortfreq_t)((f)*(shortfreq_t)1000000))
 Macro to return short Hz when f=MHz


#define s_GHz(f)   ((shortfreq_t)((f)*(shortfreq_t)1000000000))
 Macro to return short Hz when f=GHz


#define RIG_FREQ_NONE   Hz(0)
 Frequency none – used as default value for checking


#define RIG_VFO_N(n)   (1u<<(n))
 '' – used in caps

#define RIG_VFO_NONE   0
 VFONone – vfo unknown

#define RIG_VFO_A   RIG_VFO_N(0)
 VFOA – VFO A

#define RIG_VFO_B   RIG_VFO_N(1)
 VFOB – VFO B

#define RIG_VFO_C   RIG_VFO_N(2)
 VFOC – VFO C

#define RIG_VFO_SUB_A   RIG_VFO_N(21)
 SubA – alias for SUB_A

#define RIG_VFO_SUB_B   RIG_VFO_N(22)
 SubB – alias for SUB_B

#define RIG_VFO_MAIN_A   RIG_VFO_N(23)
 MainA – alias for MAIN_A

#define RIG_VFO_MAIN_B   RIG_VFO_N(24)
 MainB – alias for MAIN_B

#define RIG_VFO_SUB   RIG_VFO_N(25)
 Sub – alias for SUB

#define RIG_VFO_MAIN   RIG_VFO_N(26)
 Main – alias for MAIN

#define RIG_VFO_VFO   RIG_VFO_N(27)
 VFO – means (last or any)VFO mode, with set_vfo

#define RIG_VFO_MEM   RIG_VFO_N(28)
 MEM – means Memory mode, to be used with set_vfo

#define RIG_VFO_CURR   RIG_VFO_N(29)
 currVFO – current "tunable channel"/VFO

#define RIG_VFO_TX_FLAG   RIG_VFO_N(30)
 Flag to set if VFO can transmit

#define RIG_VFO_TX_VFO(v)   ((v)|RIG_VFO_TX_FLAG)
 Macro to tell you if VFO can transmit

#define RIG_VFO_TX   RIG_VFO_TX_VFO(RIG_VFO_CURR)
 TX – alias for split tx or uplink, of VFO_CURR


#define RIG_VFO_RX   RIG_VFO_CURR
 RX – alias for split rx or downlink

#define RIG_PASSBAND_NORMAL   s_Hz(0)
 Macro for bandpass to be set to normal.

#define RIG_PASSBAND_NOCHANGE   s_Hz(-1)
 Macro for bandpass to be left alone.

#define RIG_ANT_NONE   0
 Antenna numberNo antenna set yet or unknown.

#define RIG_ANT_N(n)   ((ant_t)1<<(n))
 Antenna conversion macroConvert antenna number to bit mask.

#define RIG_ANT_1   RIG_ANT_N(0)
 Macro for Ant#1.

#define RIG_ANT_2   RIG_ANT_N(1)
 Macro for Ant#2.

#define RIG_ANT_3   RIG_ANT_N(2)
 Macro for Ant#3.

#define RIG_ANT_4   RIG_ANT_N(3)
 Macro for Ant#4.

#define RIG_ANT_5   RIG_ANT_N(4)
 Macro for Ant#5.

#define RIG_ANT_UNKNOWN   RIG_ANT_N(30)
 Macro for unknown antenna.

#define RIG_ANT_CURR   RIG_ANT_N(31)
 Antenna is on whatever "current" means.

#define RIG_ANT_MAX   32
 Maximum antenna#.

#define RIG_LEVEL_NONE   0

#define RIG_LEVEL_PREAMP   CONSTANT_64BIT_FLAG(0)

#define RIG_LEVEL_ATT   CONSTANT_64BIT_FLAG(1)

#define RIG_LEVEL_VOXDELAY   CONSTANT_64BIT_FLAG(2)

#define RIG_LEVEL_AF   CONSTANT_64BIT_FLAG(3)

#define RIG_LEVEL_RF   CONSTANT_64BIT_FLAG(4)

#define RIG_LEVEL_SQL   CONSTANT_64BIT_FLAG(5)

#define RIG_LEVEL_IF   CONSTANT_64BIT_FLAG(6)

#define RIG_LEVEL_APF   CONSTANT_64BIT_FLAG(7)

#define RIG_LEVEL_NR   CONSTANT_64BIT_FLAG(8)

#define RIG_LEVEL_PBT_IN   CONSTANT_64BIT_FLAG(9)

#define RIG_LEVEL_PBT_OUT   CONSTANT_64BIT_FLAG(10)

#define RIG_LEVEL_CWPITCH   CONSTANT_64BIT_FLAG(11)

#define RIG_LEVEL_RFPOWER   CONSTANT_64BIT_FLAG(12)

#define RIG_LEVEL_MICGAIN   CONSTANT_64BIT_FLAG(13)

#define RIG_LEVEL_KEYSPD   CONSTANT_64BIT_FLAG(14)

#define RIG_LEVEL_NOTCHF   CONSTANT_64BIT_FLAG(15)

#define RIG_LEVEL_COMP   CONSTANT_64BIT_FLAG(16)

#define RIG_LEVEL_AGC   CONSTANT_64BIT_FLAG(17)

#define RIG_LEVEL_BKINDL   CONSTANT_64BIT_FLAG(18)

#define RIG_LEVEL_BALANCE   CONSTANT_64BIT_FLAG(19)

#define RIG_LEVEL_METER   CONSTANT_64BIT_FLAG(20)

#define RIG_LEVEL_VOXGAIN   CONSTANT_64BIT_FLAG(21)

#define RIG_LEVEL_ANTIVOX   CONSTANT_64BIT_FLAG(22)

#define RIG_LEVEL_SLOPE_LOW   CONSTANT_64BIT_FLAG(23)

#define RIG_LEVEL_SLOPE_HIGH   CONSTANT_64BIT_FLAG(24)

#define RIG_LEVEL_BKIN_DLYMS   CONSTANT_64BIT_FLAG(25)

#define RIG_LEVEL_RAWSTR   CONSTANT_64BIT_FLAG(26)

#define RIG_LEVEL_SQLSTAT   CONSTANT_64BIT_FLAG(27)

#define RIG_LEVEL_SWR   CONSTANT_64BIT_FLAG(28)

#define RIG_LEVEL_ALC   CONSTANT_64BIT_FLAG(29)

#define RIG_LEVEL_STRENGTH   CONSTANT_64BIT_FLAG(30)

#define RIG_LEVEL_RFPOWER_METER   CONSTANT_64BIT_FLAG(32)

#define RIG_LEVEL_COMP_METER   CONSTANT_64BIT_FLAG(33)

#define RIG_LEVEL_VD_METER   CONSTANT_64BIT_FLAG(34)

#define RIG_LEVEL_ID_METER   CONSTANT_64BIT_FLAG(35)

#define RIG_LEVEL_NOTCHF_RAW   CONSTANT_64BIT_FLAG(36)

#define RIG_LEVEL_MONITOR_GAIN   CONSTANT_64BIT_FLAG(37)

#define RIG_LEVEL_NB   CONSTANT_64BIT_FLAG(38)

#define RIG_LEVEL_RFPOWER_METER_WATTS   CONSTANT_64BIT_FLAG(39)

#define RIG_LEVEL_40   CONSTANT_64BIT_FLAG(40)

#define RIG_LEVEL_41   CONSTANT_64BIT_FLAG(41)

#define RIG_LEVEL_42   CONSTANT_64BIT_FLAG(42)

#define RIG_LEVEL_43   CONSTANT_64BIT_FLAG(43)

#define RIG_LEVEL_44   CONSTANT_64BIT_FLAG(44)

#define RIG_LEVEL_45   CONSTANT_64BIT_FLAG(45)

#define RIG_LEVEL_46   CONSTANT_64BIT_FLAG(46)

#define RIG_LEVEL_47   CONSTANT_64BIT_FLAG(47)

#define RIG_LEVEL_48   CONSTANT_64BIT_FLAG(48)

#define RIG_LEVEL_49   CONSTANT_64BIT_FLAG(49)

#define RIG_LEVEL_50   CONSTANT_64BIT_FLAG(50)

#define RIG_LEVEL_51   CONSTANT_64BIT_FLAG(51)

#define RIG_LEVEL_52   CONSTANT_64BIT_FLAG(52)

#define RIG_LEVEL_53   CONSTANT_64BIT_FLAG(53)

#define RIG_LEVEL_54   CONSTANT_64BIT_FLAG(54)

#define RIG_LEVEL_55   CONSTANT_64BIT_FLAG(55)

#define RIG_LEVEL_56   CONSTANT_64BIT_FLAG(56)

#define RIG_LEVEL_57   CONSTANT_64BIT_FLAG(57)

#define RIG_LEVEL_58   CONSTANT_64BIT_FLAG(58)

#define RIG_LEVEL_59   CONSTANT_64BIT_FLAG(59)

#define RIG_LEVEL_60   CONSTANT_64BIT_FLAG(60)

#define RIG_LEVEL_61   CONSTANT_64BIT_FLAG(61)

#define RIG_LEVEL_62   CONSTANT_64BIT_FLAG(62)

#define RIG_LEVEL_63   CONSTANT_64BIT_FLAG(63)

#define RIG_SETTING_MAX   64
 Maximum # of rig settings.

#define RIG_TRN_OFF   0
 Tranceive mode The rig notifies the host of any event, like freq changed, mode changed, etc.Turn it off. More...

#define RIG_TRN_RIG   1
 Tranceive mode. More...

#define RIG_TRN_POLL   2

#define RIG_FUNC_NONE   0
 Rig Function Settings. More...

#define RIG_FUNC_FAGC   CONSTANT_64BIT_FLAG (0)

#define RIG_FUNC_NB   CONSTANT_64BIT_FLAG (1)

#define RIG_FUNC_COMP   CONSTANT_64BIT_FLAG (2)

#define RIG_FUNC_VOX   CONSTANT_64BIT_FLAG (3)

#define RIG_FUNC_TONE   CONSTANT_64BIT_FLAG (4)

#define RIG_FUNC_TSQL   CONSTANT_64BIT_FLAG (5)

#define RIG_FUNC_SBKIN   CONSTANT_64BIT_FLAG (6)

#define RIG_FUNC_FBKIN   CONSTANT_64BIT_FLAG (7)

#define RIG_FUNC_ANF   CONSTANT_64BIT_FLAG (8)

#define RIG_FUNC_NR   CONSTANT_64BIT_FLAG (9)

#define RIG_FUNC_AIP   CONSTANT_64BIT_FLAG (10)

#define RIG_FUNC_APF   CONSTANT_64BIT_FLAG (11)

#define RIG_FUNC_MON   CONSTANT_64BIT_FLAG (12)

#define RIG_FUNC_MN   CONSTANT_64BIT_FLAG (13)

#define RIG_FUNC_RF   CONSTANT_64BIT_FLAG (14)

#define RIG_FUNC_ARO   CONSTANT_64BIT_FLAG (15)

#define RIG_FUNC_LOCK   CONSTANT_64BIT_FLAG (16)

#define RIG_FUNC_MUTE   CONSTANT_64BIT_FLAG (17)

#define RIG_FUNC_VSC   CONSTANT_64BIT_FLAG (18)

#define RIG_FUNC_REV   CONSTANT_64BIT_FLAG (19)

#define RIG_FUNC_SQL   CONSTANT_64BIT_FLAG (20)

#define RIG_FUNC_ABM   CONSTANT_64BIT_FLAG (21)

#define RIG_FUNC_BC   CONSTANT_64BIT_FLAG (22)

#define RIG_FUNC_MBC   CONSTANT_64BIT_FLAG (23)

#define RIG_FUNC_RIT   CONSTANT_64BIT_FLAG (24)

#define RIG_FUNC_AFC   CONSTANT_64BIT_FLAG (25)

#define RIG_FUNC_SATMODE   CONSTANT_64BIT_FLAG (26)

#define RIG_FUNC_SCOPE   CONSTANT_64BIT_FLAG (27)

#define RIG_FUNC_RESUME   CONSTANT_64BIT_FLAG (28)

#define RIG_FUNC_TBURST   CONSTANT_64BIT_FLAG (29)

#define RIG_FUNC_TUNER   CONSTANT_64BIT_FLAG (30)

#define RIG_FUNC_XIT   CONSTANT_64BIT_FLAG (31)

#define RIG_FUNC_NB2   CONSTANT_64BIT_FLAG (32)

#define RIG_FUNC_CSQL   CONSTANT_64BIT_FLAG (33)

#define RIG_FUNC_AFLT   CONSTANT_64BIT_FLAG (34)

#define RIG_FUNC_ANL   CONSTANT_64BIT_FLAG (35)

#define RIG_FUNC_BC2   CONSTANT_64BIT_FLAG (36)

#define RIG_FUNC_DUAL_WATCH   CONSTANT_64BIT_FLAG (37)

#define RIG_FUNC_DIVERSITY   CONSTANT_64BIT_FLAG (38)

#define RIG_FUNC_DSQL   CONSTANT_64BIT_FLAG (39)

#define RIG_FUNC_SCEN   CONSTANT_64BIT_FLAG (40)

#define RIG_FUNC_BIT41   CONSTANT_64BIT_FLAG (41)

#define RIG_FUNC_BIT42   CONSTANT_64BIT_FLAG (42)

#define RIG_FUNC_BIT43   CONSTANT_64BIT_FLAG (43)

#define RIG_FUNC_BIT44   CONSTANT_64BIT_FLAG (44)

#define RIG_FUNC_BIT45   CONSTANT_64BIT_FLAG (45)

#define RIG_FUNC_BIT46   CONSTANT_64BIT_FLAG (46)

#define RIG_FUNC_BIT47   CONSTANT_64BIT_FLAG (47)

#define RIG_FUNC_BIT48   CONSTANT_64BIT_FLAG (48)

#define RIG_FUNC_BIT49   CONSTANT_64BIT_FLAG (49)

#define RIG_FUNC_BIT50   CONSTANT_64BIT_FLAG (50)

#define RIG_FUNC_BIT51   CONSTANT_64BIT_FLAG (51)

#define RIG_FUNC_BIT52   CONSTANT_64BIT_FLAG (52)

#define RIG_FUNC_BIT53   CONSTANT_64BIT_FLAG (53)

#define RIG_FUNC_BIT54   CONSTANT_64BIT_FLAG (54)

#define RIG_FUNC_BIT55   CONSTANT_64BIT_FLAG (55)

#define RIG_FUNC_BIT56   CONSTANT_64BIT_FLAG (56)

#define RIG_FUNC_BIT57   CONSTANT_64BIT_FLAG (57)

#define RIG_FUNC_BIT58   CONSTANT_64BIT_FLAG (58)

#define RIG_FUNC_BIT59   CONSTANT_64BIT_FLAG (59)

#define RIG_FUNC_BIT60   CONSTANT_64BIT_FLAG (60)

#define RIG_FUNC_BIT61   CONSTANT_64BIT_FLAG (61)

#define RIG_FUNC_BIT62   CONSTANT_64BIT_FLAG (62)

#define RIG_FUNC_BIT63   CONSTANT_64BIT_FLAG (63)

#define mW(p)   ((int)(p))
 power unit macrosConverts a power level integer to milliwatts. This is limited to 2 megawatts on 32 bit systems.

#define Watts(p)   ((int)((p)*1000))
 power unit macros More...

#define W(p)   Watts(p)
 power unit macros More...

#define RIG_MODE_NONE   0

#define RIG_MODE_AM   CONSTANT_64BIT_FLAG (0)

#define RIG_MODE_CW   CONSTANT_64BIT_FLAG (1)

#define RIG_MODE_USB   CONSTANT_64BIT_FLAG (2)

#define RIG_MODE_LSB   CONSTANT_64BIT_FLAG (3)

#define RIG_MODE_RTTY   CONSTANT_64BIT_FLAG (4)

#define RIG_MODE_FM   CONSTANT_64BIT_FLAG (5)

#define RIG_MODE_WFM   CONSTANT_64BIT_FLAG (6)

#define RIG_MODE_CWR   CONSTANT_64BIT_FLAG (7)

#define RIG_MODE_RTTYR   CONSTANT_64BIT_FLAG (8)

#define RIG_MODE_AMS   CONSTANT_64BIT_FLAG (9)

#define RIG_MODE_PKTLSB   CONSTANT_64BIT_FLAG (10)

#define RIG_MODE_PKTUSB   CONSTANT_64BIT_FLAG (11)

#define RIG_MODE_PKTFM   CONSTANT_64BIT_FLAG (12)

#define RIG_MODE_ECSSUSB   CONSTANT_64BIT_FLAG (13)

#define RIG_MODE_ECSSLSB   CONSTANT_64BIT_FLAG (14)

#define RIG_MODE_FAX   CONSTANT_64BIT_FLAG (15)

#define RIG_MODE_SAM   CONSTANT_64BIT_FLAG (16)

#define RIG_MODE_SAL   CONSTANT_64BIT_FLAG (17)

#define RIG_MODE_SAH   CONSTANT_64BIT_FLAG (18)

#define RIG_MODE_DSB   CONSTANT_64BIT_FLAG (19)

#define RIG_MODE_FMN   CONSTANT_64BIT_FLAG (21)

#define RIG_MODE_PKTAM   CONSTANT_64BIT_FLAG (22)

#define RIG_MODE_P25   CONSTANT_64BIT_FLAG (23)

#define RIG_MODE_DSTAR   CONSTANT_64BIT_FLAG (24)

#define RIG_MODE_DPMR   CONSTANT_64BIT_FLAG (25)

#define RIG_MODE_NXDNVN   CONSTANT_64BIT_FLAG (26)

#define RIG_MODE_NXDN_N   CONSTANT_64BIT_FLAG (27)

#define RIG_MODE_DCR   CONSTANT_64BIT_FLAG (28)

#define RIG_MODE_AMN   CONSTANT_64BIT_FLAG (29)

#define RIG_MODE_PSK   CONSTANT_64BIT_FLAG (30)

#define RIG_MODE_PSKR   CONSTANT_64BIT_FLAG (31)

#define RIG_MODE_DD   CONSTANT_64BIT_FLAG (32)

#define RIG_MODE_C4FM   CONSTANT_64BIT_FLAG (33)

#define RIG_MODE_PKTFMN   CONSTANT_64BIT_FLAG (34)

#define RIG_MODE_SPEC   CONSTANT_64BIT_FLAG (35)

#define RIG_MODE_BIT36   CONSTANT_64BIT_FLAG (36)

#define RIG_MODE_BIT37   CONSTANT_64BIT_FLAG (37)

#define RIG_MODE_BIT38   CONSTANT_64BIT_FLAG (38)

#define RIG_MODE_BIT39   CONSTANT_64BIT_FLAG (39)

#define RIG_MODE_BIT40   CONSTANT_64BIT_FLAG (40)

#define RIG_MODE_BIT41   CONSTANT_64BIT_FLAG (41)

#define RIG_MODE_BIT42   CONSTANT_64BIT_FLAG (42)

#define RIG_MODE_BIT43   CONSTANT_64BIT_FLAG (43)

#define RIG_MODE_BIT44   CONSTANT_64BIT_FLAG (44)

#define RIG_MODE_BIT45   CONSTANT_64BIT_FLAG (45)

#define RIG_MODE_BIT46   CONSTANT_64BIT_FLAG (46)

#define RIG_MODE_BIT47   CONSTANT_64BIT_FLAG (47)

#define RIG_MODE_BIT48   CONSTANT_64BIT_FLAG (48)

#define RIG_MODE_BIT49   CONSTANT_64BIT_FLAG (49)

#define RIG_MODE_BIT50   CONSTANT_64BIT_FLAG (50)

#define RIG_MODE_BIT51   CONSTANT_64BIT_FLAG (51)

#define RIG_MODE_BIT52   CONSTANT_64BIT_FLAG (52)

#define RIG_MODE_BIT53   CONSTANT_64BIT_FLAG (53)

#define RIG_MODE_BIT54   CONSTANT_64BIT_FLAG (54)

#define RIG_MODE_BIT55   CONSTANT_64BIT_FLAG (55)

#define RIG_MODE_BIT56   CONSTANT_64BIT_FLAG (56)

#define RIG_MODE_BIT57   CONSTANT_64BIT_FLAG (57)

#define RIG_MODE_BIT58   CONSTANT_64BIT_FLAG (58)

#define RIG_MODE_BIT59   CONSTANT_64BIT_FLAG (59)

#define RIG_MODE_BIT60   CONSTANT_64BIT_FLAG (60)

#define RIG_MODE_BIT61   CONSTANT_64BIT_FLAG (61)

#define RIG_MODE_BIT62   CONSTANT_64BIT_FLAG (62)

#define RIG_MODE_TESTS_MAX   CONSTANT_64BIT_FLAG (63)

#define RIG_MODE_SSB   (RIG_MODE_USB|RIG_MODE_LSB)
 macro for backends, not to be used by rig_set_mode et al.

#define RIG_MODE_ECSS   (RIG_MODE_ECSSUSB|RIG_MODE_ECSSLSB)
 macro for backends, not to be used by rig_set_mode et al.

#define RIG_CHFLAG_NONE   0
 Empty channel_t.flags field.

#define RIG_CHFLAG_SKIP   (1<<0)
 skip memory channel during scan (lock out), channel_t.flags

#define RIG_CHFLAG_DATA   (1<<1)
 DATA port mode flag.

#define RIG_CHFLAG_PSKIP   (1<<2)
 programmed skip (PSKIP) memory channel during scan (lock out), channel_t.flags

#define RIG_MEM_CAPS_ALL   -1
 Special memory channel value to tell rig_lookup_mem_caps() to retrieve all the ranges.

#define HAMLIB_ELAPSED_GET   0

#define HAMLIB_ELAPSED_SET   1

#define HAMLIB_ELAPSED_INVALIDATE   2


Typedefs

typedef struct s_rig RIG
 Rig structure definition (see rig for details).

typedef unsigned int tone_t
 CTCSS and DCS type definition. More...

typedef enum rig_port_e rig_port_t
 Port type.

typedef double freq_t
 Frequency type,. More...

typedef signed long shortfreq_t
 Short frequency type. More...

typedef unsigned int vfo_t
 VFO definition. More...

typedef shortfreq_t pbwidth_t

typedef enum dcd_e dcd_t
 DCD status.

typedef long token_t
 configuration token

typedef unsigned int ant_t
 Antenna typedef.

typedef uint64_t rig_level_e
 Rig Level Settings. More...

typedef uint64_t setting_t
 Setting. More...

typedef uint64_t rmode_t
 Radio mode. More...

typedef struct freq_range_list freq_range_t
 Frequency range. More...

typedef struct channel channel_t
 Channel structure typedef.

typedef struct channel_cap channel_cap_t
 Channel cap.

typedef struct chan_list chan_t
 chan_t type

typedef struct gran gran_t
 gran_t type

typedef struct cal_table cal_table_t
 calibration table type More...

typedef struct cal_table_float cal_table_float_t
 calibration table type for float values More...

typedef hamlib_port_t port_t
 Rig data structure. More...


Enumerations

enum  rig_errcode_e {
  RIG_OK = 0 , RIG_EINVAL , RIG_ECONF , RIG_ENOMEM ,
  RIG_ENIMPL , RIG_ETIMEOUT , RIG_EIO , RIG_EINTERNAL ,
  RIG_EPROTO , RIG_ERJCTED , RIG_ETRUNC , RIG_ENAVAIL ,
  RIG_ENTARGET , RIG_BUSERROR , RIG_BUSBUSY , RIG_EARG ,
  RIG_EVFO , RIG_EDOM
}
 Hamlib error codes Error code definition that can be returned by the Hamlib functions. Unless stated otherwise, Hamlib functions return the negative value of rig_errcode_e definitions in case of error, or 0 when successful. More...

enum  rig_debug_level_e {
  RIG_DEBUG_NONE = 0 , RIG_DEBUG_BUG , RIG_DEBUG_ERR , RIG_DEBUG_WARN ,
  RIG_DEBUG_VERBOSE , RIG_DEBUG_TRACE
}
 Hamlib debug levels. More...

enum  rig_port_e {
  RIG_PORT_NONE = 0 , RIG_PORT_SERIAL , RIG_PORT_NETWORK , RIG_PORT_DEVICE ,
  RIG_PORT_PACKET , RIG_PORT_DTMF , RIG_PORT_ULTRA , RIG_PORT_RPC ,
  RIG_PORT_PARALLEL , RIG_PORT_USB , RIG_PORT_UDP_NETWORK , RIG_PORT_CM108 ,
  RIG_PORT_GPIO , RIG_PORT_GPION
}
 Port type. More...

enum  serial_parity_e {
  RIG_PARITY_NONE = 0 , RIG_PARITY_ODD , RIG_PARITY_EVEN , RIG_PARITY_MARK ,
  RIG_PARITY_SPACE
}
 Serial parity. More...

enum  serial_handshake_e { RIG_HANDSHAKE_NONE = 0 , RIG_HANDSHAKE_XONXOFF , RIG_HANDSHAKE_HARDWARE }
 Serial handshake. More...

enum  serial_control_state_e { RIG_SIGNAL_UNSET = 0 , RIG_SIGNAL_ON , RIG_SIGNAL_OFF }
 Serial control state. More...

enum  rig_type_t {
  RIG_FLAG_RECEIVER = (1 << 1) , RIG_FLAG_TRANSMITTER = (1 << 2) , RIG_FLAG_SCANNER = (1 << 3) , RIG_FLAG_MOBILE = (1 << 4) ,
  RIG_FLAG_HANDHELD = (1 << 5) , RIG_FLAG_COMPUTER = (1 << 6) , RIG_FLAG_TRUNKING = (1 << 7) , RIG_FLAG_APRS = (1 << 8) ,
  RIG_FLAG_TNC = (1 << 9) , RIG_FLAG_DXCLUSTER = (1 << 10) , RIG_FLAG_TUNER = (1 << 11)
}
 Rig type flags. More...

enum  rig_status_e {
  RIG_STATUS_ALPHA = 0 , RIG_STATUS_UNTESTED , RIG_STATUS_BETA , RIG_STATUS_STABLE ,
  RIG_STATUS_BUGGY
}
 Development status of the backend. More...

enum  rptr_shift_t { RIG_RPT_SHIFT_NONE = 0 , RIG_RPT_SHIFT_MINUS , RIG_RPT_SHIFT_PLUS }
 Repeater shift type. More...

enum  split_t { RIG_SPLIT_OFF = 0 , RIG_SPLIT_ON }
 Split mode. More...

enum  dcd_e { RIG_DCD_OFF = 0 , RIG_DCD_ON }
 DCD status. More...

enum  dcd_type_t {
  RIG_DCD_NONE = 0 , RIG_DCD_RIG , RIG_DCD_SERIAL_DSR , RIG_DCD_SERIAL_CTS ,
  RIG_DCD_SERIAL_CAR , RIG_DCD_PARALLEL , RIG_DCD_CM108 , RIG_DCD_GPIO ,
  RIG_DCD_GPION
}
 DCD type. More...

enum  ptt_t { RIG_PTT_OFF = 0 , RIG_PTT_ON , RIG_PTT_ON_MIC , RIG_PTT_ON_DATA }
 PTT status. More...

enum  ptt_type_t {
  RIG_PTT_NONE = 0 , RIG_PTT_RIG , RIG_PTT_SERIAL_DTR , RIG_PTT_SERIAL_RTS ,
  RIG_PTT_PARALLEL , RIG_PTT_RIG_MICDATA , RIG_PTT_CM108 , RIG_PTT_GPIO ,
  RIG_PTT_GPION
}
 PTT type. More...

enum  powerstat_t {
  RIG_POWER_OFF = 0 , RIG_POWER_ON = (1 << 0) , RIG_POWER_STANDBY = (1 << 1) , RIG_POWER_OPERATE = (1 << 2) ,
  RIG_POWER_UNKNOWN = (1 << 3)
}
 Radio power state. More...

enum  reset_t {
  RIG_RESET_NONE = 0 , RIG_RESET_SOFT = (1 << 0) , RIG_RESET_VFO = (1 << 1) , RIG_RESET_MCALL = (1 << 2) ,
  RIG_RESET_MASTER = (1 << 3)
}
 Reset operation. More...

enum  vfo_op_t {
  RIG_OP_NONE = 0 , RIG_OP_CPY = (1 << 0) , RIG_OP_XCHG = (1 << 1) , RIG_OP_FROM_VFO = (1 << 2) ,
  RIG_OP_TO_VFO = (1 << 3) , RIG_OP_MCL = (1 << 4) , RIG_OP_UP = (1 << 5) , RIG_OP_DOWN = (1 << 6) ,
  RIG_OP_BAND_UP = (1 << 7) , RIG_OP_BAND_DOWN = (1 << 8) , RIG_OP_LEFT = (1 << 9) , RIG_OP_RIGHT = (1 << 10) ,
  RIG_OP_TUNE = (1 << 11) , RIG_OP_TOGGLE = (1 << 12)
}
 VFO operation. More...

enum  scan_t {
  RIG_SCAN_NONE = 0 , RIG_SCAN_MEM = (1 << 0) , RIG_SCAN_SLCT = (1 << 1) , RIG_SCAN_PRIO = (1 << 2) ,
  RIG_SCAN_PROG = (1 << 3) , RIG_SCAN_DELTA = (1 << 4) , RIG_SCAN_VFO = (1 << 5) , RIG_SCAN_PLT = (1 << 6) ,
  RIG_SCAN_STOP = (1 << 7)
}
 Rig Scan operation. More...

enum  rig_conf_e {
  RIG_CONF_STRING , RIG_CONF_COMBO , RIG_CONF_NUMERIC , RIG_CONF_CHECKBUTTON ,
  RIG_CONF_BUTTON , RIG_CONF_BINARY
}
 parameter types More...

enum  ann_t {
  RIG_ANN_NONE = 0 , RIG_ANN_OFF = RIG_ANN_NONE , RIG_ANN_FREQ = (1 << 0) , RIG_ANN_RXMODE = (1 << 1) ,
  RIG_ANN_CW = (1 << 2) , RIG_ANN_ENG = (1 << 3) , RIG_ANN_JAP = (1 << 4)
}
 Announce. More...

enum  agc_level_e {
  RIG_AGC_OFF = 0 , RIG_AGC_SUPERFAST , RIG_AGC_FAST , RIG_AGC_SLOW ,
  RIG_AGC_USER , RIG_AGC_MEDIUM , RIG_AGC_AUTO
}
 AGC delay settings. More...

enum  meter_level_e {
  RIG_METER_NONE = 0 , RIG_METER_SWR = (1 << 0) , RIG_METER_COMP = (1 << 1) , RIG_METER_ALC = (1 << 2) ,
  RIG_METER_IC = (1 << 3) , RIG_METER_DB = (1 << 4) , RIG_METER_PO = (1 << 5) , RIG_METER_VDD = (1 << 6) ,
  RIG_METER_TEMP = (1 << 7)
}
 Level display meters.

enum  rig_parm_e {
  RIG_PARM_NONE = 0 , RIG_PARM_ANN = (1 << 0) , RIG_PARM_APO = (1 << 1) , RIG_PARM_BACKLIGHT = (1 << 2) ,
  RIG_PARM_BEEP = (1 << 4) , RIG_PARM_TIME = (1 << 5) , RIG_PARM_BAT = (1 << 6) , RIG_PARM_KEYLIGHT = (1 << 7) ,
  RIG_PARM_SCREENSAVER = (1 << 8)
}
 Rig Parameters. More...

enum  chan_type_t {
  RIG_MTYPE_NONE = 0 , RIG_MTYPE_MEM , RIG_MTYPE_EDGE , RIG_MTYPE_CALL ,
  RIG_MTYPE_MEMOPAD , RIG_MTYPE_SAT , RIG_MTYPE_BAND , RIG_MTYPE_PRIO
}
 Memory channel type definition. More...

enum  hamlib_cache_t {
  HAMLIB_CACHE_ALL , HAMLIB_CACHE_VFO , HAMLIB_CACHE_FREQ , HAMLIB_CACHE_MODE ,
  HAMLIB_CACHE_PTT , HAMLIB_CACHE_SPLIT
}


Detailed Description

Hamlib rig data structures.

This file contains the data structures and definitions for the Hamlib rig API. see the rig.c file for more details on the rig API.

Generated by doxygen 1.9.1

Hamlib documentation for version 4.1 -- Mon Feb 1 2021 08:00:28
Project page: http://www.hamlib.org
