Rig state containing live data and customized fields. More...

#include <rig.h>

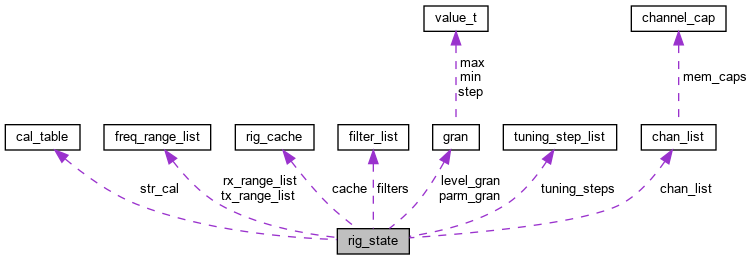

Collaboration diagram for rig_state:

[legend]

Data Fields
hamlib_port_t	rigport

hamlib_port_t	pttport

hamlib_port_t	dcdport

double	vfo_comp

int	deprecated_itu_region

freq_range_t	rx_range_list [FRQRANGESIZ]

freq_range_t	tx_range_list [FRQRANGESIZ]

struct tuning_step_list	tuning_steps [TSLSTSIZ]

struct filter_list	filters [FLTLSTSIZ]

cal_table_t	str_cal

chan_t	chan_list [CHANLSTSIZ]

shortfreq_t	max_rit

shortfreq_t	max_xit

shortfreq_t	max_ifshift

ann_t	announces

int	preamp [MAXDBLSTSIZ]

int	attenuator [MAXDBLSTSIZ]

setting_t	has_get_func

setting_t	has_set_func

setting_t	has_get_level

setting_t	has_set_level

setting_t	has_get_parm

setting_t	has_set_parm

gran_t	level_gran [64]

gran_t	parm_gran [64]

int	hold_decode

vfo_t	current_vfo

int	vfo_list

int	comm_state

rig_ptr_t	priv

rig_ptr_t	obj

int	transceive

int	poll_interval

freq_t	current_freq

rmode_t	current_mode

pbwidth_t	current_width

vfo_t	tx_vfo

rmode_t	mode_list

int	transmit

freq_t	lo_freq

time_t	twiddle_time

int	twiddle_timeout

int	uplink

struct rig_cache	cache

int	vfo_opt

int	auto_power_on

int	auto_disable_screensaver

int	ptt_share

int	power_now

int	power_min

int	power_max

unsigned char	disable_yaesu_bandselect

Detailed Description

Rig state containing live data and customized fields.

This struct contains live data, as well as a copy of capability fields that may be updated (ie. customized)

It is fine to move fields around, as this kind of struct should not be initialized like caps are.

Field Documentation

◆ announces

ann_t rig_state::announces

Announces bit field list

◆ attenuator

int rig_state::attenuator[MAXDBLSTSIZ]

Preamp list in dB, 0 terminated

◆ auto_disable_screensaver

int rig_state::auto_disable_screensaver

Allow Hamlib to disable the rig's screen saver automatically if supported

◆ auto_power_on

int rig_state::auto_power_on

Allow Hamlib to power rig automatically if supported

◆ chan_list

chan_t rig_state::chan_list[CHANLSTSIZ]

Channel list, zero ended

◆ comm_state

int rig_state::comm_state

Comm port state, opened/closed.

◆ current_freq

freq_t rig_state::current_freq

Frequency currently set

◆ current_mode

rmode_t rig_state::current_mode

Mode currently set

◆ current_vfo

vfo_t rig_state::current_vfo

VFO currently set

◆ current_width

pbwidth_t rig_state::current_width

Passband width currently set

◆ dcdport

hamlib_port_t rig_state::dcdport

DCD port (internal use).

◆ deprecated_itu_region

int rig_state::deprecated_itu_region

ITU region to select among freq_range_t

◆ disable_yaesu_bandselect

unsigned char rig_state::disable_yaesu_bandselect

Disables Yaeus band select logic

◆ filters

struct filter_list rig_state::filters[FLTLSTSIZ]

Mode/filter table, at -6dB

◆ has_get_func

setting_t rig_state::has_get_func

List of get functions

◆ has_get_level

setting_t rig_state::has_get_level

List of get level

◆ has_get_parm

setting_t rig_state::has_get_parm

List of get parm

◆ has_set_func

setting_t rig_state::has_set_func

List of set functions

◆ has_set_level

setting_t rig_state::has_set_level

List of set level

◆ has_set_parm

setting_t rig_state::has_set_parm

List of set parm

◆ hold_decode

int rig_state::hold_decode

set to 1 to hold the event decoder (async) otherwise 0

◆ level_gran

gran_t rig_state::level_gran[64]

level granularity

◆ lo_freq

freq_t rig_state::lo_freq

Local oscillator frequency of any transverter

◆ max_ifshift

shortfreq_t rig_state::max_ifshift

max absolute IF-SHIFT

◆ max_rit

shortfreq_t rig_state::max_rit

max absolute RIT

◆ max_xit

shortfreq_t rig_state::max_xit

max absolute XIT

◆ mode_list

rmode_t rig_state::mode_list

Complete list of modes for this rig

◆ obj

rig_ptr_t rig_state::obj

Internal use by hamlib++ for event handling.

◆ parm_gran

gran_t rig_state::parm_gran[64]

parm granularity

◆ poll_interval

int rig_state::poll_interval

Event notification polling period in milliseconds

◆ power_max

int rig_state::power_max

Maximum RF power level in rig units

◆ power_min

int rig_state::power_min

Minimum RF power level in rig units

◆ power_now

int rig_state::power_now

Current RF power level in rig units

◆ preamp

int rig_state::preamp[MAXDBLSTSIZ]

Preamp list in dB, 0 terminated

◆ priv

rig_ptr_t rig_state::priv

Pointer to private rig state data.

◆ ptt_share

int rig_state::ptt_share

Share ptt port by open/close during get_ptt, set_ptt hogs the port while active

◆ pttport

hamlib_port_t rig_state::pttport

PTT port (internal use).

◆ rigport

hamlib_port_t rig_state::rigport

Rig port (internal use).

Examples: /tests/testrig.c.

◆ rx_range_list

freq_range_t rig_state::rx_range_list[FRQRANGESIZ]

Receive frequency range list

◆ str_cal

cal_table_t rig_state::str_cal

S-meter calibration table

◆ transceive

int rig_state::transceive

Whether the transceive mode is on

◆ transmit

int rig_state::transmit

rig should be transmitting i.e. hard wired PTT asserted - used by rigs that don't do CAT while in Tx

◆ tuning_steps

struct tuning_step_list rig_state::tuning_steps[TSLSTSIZ]

Tuning step list

◆ twiddle_time

time_t rig_state::twiddle_time

time when vfo twiddling was detected

◆ twiddle_timeout

int rig_state::twiddle_timeout

timeout to resume from twiddling

◆ tx_range_list

freq_range_t rig_state::tx_range_list[FRQRANGESIZ]

Transmit frequency range list

◆ tx_vfo

vfo_t rig_state::tx_vfo

Tx VFO currently set

◆ uplink

int rig_state::uplink

uplink=1 will not read Sub, uplink=2 will not read Main

◆ vfo_comp

double rig_state::vfo_comp

VFO compensation in PPM, 0.0 to disable

◆ vfo_list

int rig_state::vfo_list

Complete list of VFO for this rig

◆ vfo_opt

int rig_state::vfo_opt

Is -o switch turned on?

The documentation for this struct was generated from the following file:

rig.h
