Hamlib amplifier data structures. More...

#include <hamlib/rig.h>
#include <hamlib/amplist.h>
#include <hamlib/amp_state.h>

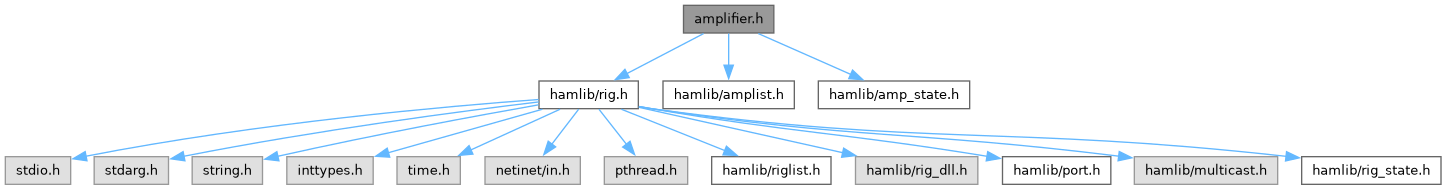

Include dependency graph for amplifier.h:

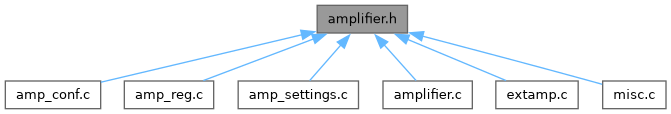

This graph shows which files directly or indirectly include this file:

Data Structures
struct	amp_caps
	Amplifier capabilities. More...
struct	amp
	Master amplifier structure. More...

Macros
#define	NETAMPCTL_RET "RPRT "
	The token in the netampctl protocol for returning an error condition code.
#define	AMP_MODEL(arg)
#define	amp_debug rig_debug
	Convenience macro for generating debugging messages.

#define	AMP_TYPE_MASK (AMP_FLAG_1\|AMP_FLAG_2)
#define	AMP_TYPE_OTHER 0
#define	AMP_TYPE_1 AMP_FLAG_1
#define	AMP_TYPE_2 AMP_FLAG_2
#define	AMP_TYPE_ALL (AMP_FLAG_1\|AMP_FLAG_2)

Typedefs
typedef struct amp	AMP
	Main amplifier handle type definition.
typedef float	swr_t
	Type definition for SWR (Standing Wave Ratio).
typedef int	tune_value_t
	Type definition for the transmatch tuning values of capacitance and inductance.
typedef enum amp_reset_e	amp_reset_t
	Amplifier reset tokens.
typedef enum amp_type_e	amp_type_t
	Amplifier type flags.

Enumerations
enum	amp_reset_e { AMP_RESET_MEM , AMP_RESET_FAULT , AMP_RESET_AMP }
	Amplifier reset tokens. More...
enum	amp_type_e { AMP_FLAG_1 = (1 << 1) , AMP_FLAG_2 = (1 << 2) }
	Amplifier type flags. More...

enum	amp_level_e { AMP_LEVEL_NONE = 0 , AMP_LEVEL_SWR = (1 << 0) , AMP_LEVEL_NH = (1 << 1) , AMP_LEVEL_PF = (1 << 2) , AMP_LEVEL_PWR_INPUT = (1 << 3) , AMP_LEVEL_PWR_FWD = (1 << 4) , AMP_LEVEL_PWR_REFLECTED = (1 << 5) , AMP_LEVEL_PWR_PEAK = (1 << 6) , AMP_LEVEL_FAULT = (1 << 7) , AMP_LEVEL_PWR = (1 << 8) }

Detailed Description

Hamlib amplifier data structures.

This file contains the data structures and declarations for the Hamlib amplifier Application Programming Interface (API).

See the amplifier.c file for details on the amplifier API functions.
