amplist.h File Reference

Hamlib amplifier model definitions. More...

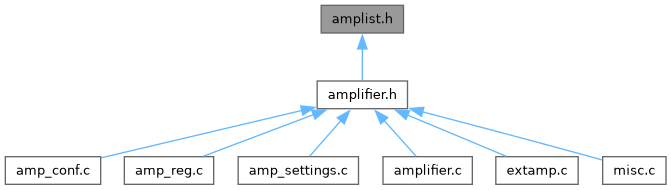

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	AMP_MAKE_MODEL(a, b)
	The amp model number is held in a signed integer.
#define	AMP_BACKEND_NUM(a)
#define	AMP_MODEL_NONE   0
	A macro that returns the model number for an unknown model.
#define	AMP_DUMMY   0
#define	AMP_BACKEND_DUMMY   "dummy"
#define	AMP_MODEL_DUMMY   AMP_MAKE_MODEL(AMP_DUMMY, 1)
	A macro that returns the model number for DUMMY.
#define	AMP_MODEL_NETAMPCTL   AMP_MAKE_MODEL(AMP_DUMMY, 2)
	A macro that returns the model number for NETAMPCTL.
#define	AMP_ELECRAFT   2
#define	AMP_BACKEND_ELECRAFT   "elecraft"
#define	AMP_MODEL_ELECRAFT_KPA1500   AMP_MAKE_MODEL(AMP_ELECRAFT, 1)
	A macro that returns the model number of KPA1500.
#define	AMP_GEMINI   3
#define	AMP_BACKEND_GEMINI   "gemini"
#define	AMP_MODEL_GEMINI_DX1200   AMP_MAKE_MODEL(AMP_GEMINI, 1)
	A macro that returns the model number of DX1200.
#define	AMP_EXPERT   4
#define	AMP_BACKEND_EXPERT   "expert"
#define	AMP_MODEL_EXPERT_FA   AMP_MAKE_MODEL(AMP_EXPERT, 1)
	A macro that returns the model number of FA.

Typedefs
typedef int	amp_model_t

Detailed Description

Hamlib amplifier model definitions.

This file contains amplifier model definitions for the Hamlib amplifier Application Programming Interface (API). Each distinct amplifier type has a unique model number (ID) and is used by Hamlib to identify and distinguish between the different hardware drivers. The exact model numbers can be acquired using the macros in this file. To obtain a list of supported amplifier branches, one can use the statically defined AMP_BACKEND_LIST macro (defined in configure.ac). To obtain a full list of supported amplifiers (including each model in every branch), the foreach_opened_amp() API function can be used.

The model number, or ID, is used to tell Hamlib which amplifier the client wishes to use which is passed to the amp_init() API call.
