Hamlib rotator model definitions. More...

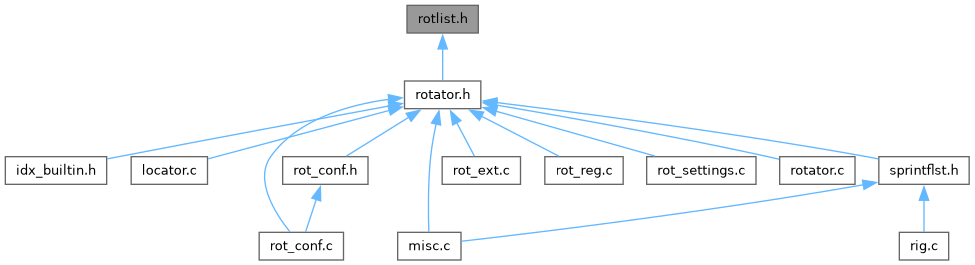

This graph shows which files directly or indirectly include this file:

Macros
#define	ROT_MAKE_MODEL(a, b)
	The rotator model number is held in a signed integer.
#define	ROT_BACKEND_NUM(a)
#define	ROT_MODEL_NONE 0
	A macro that returns the model number for an unknown model.
#define	ROT_DUMMY 0
#define	ROT_BACKEND_DUMMY "dummy"
#define	ROT_MODEL_DUMMY ROT_MAKE_MODEL(ROT_DUMMY, 1)
	A macro that returns the model number for DUMMY.
#define	ROT_MODEL_NETROTCTL ROT_MAKE_MODEL(ROT_DUMMY, 2)
	A macro that returns the model number for NETROTCTL.
#define	ROT_MODEL_PSTROTATOR ROT_MAKE_MODEL(ROT_DUMMY, 3)
	A macro that returns the model number for PSTROTATOR.
#define	ROT_MODEL_SATROTCTL ROT_MAKE_MODEL(ROT_DUMMY, 4)
	A macro that returns the model number for SATROTCTL.
#define	ROT_EASYCOMM 2
#define	ROT_BACKEND_EASYCOMM "easycomm"
#define	ROT_MODEL_EASYCOMM1 ROT_MAKE_MODEL(ROT_EASYCOMM, 1)
	A macro that returns the model number of EASYCOMM1.
#define	ROT_MODEL_EASYCOMM2 ROT_MAKE_MODEL(ROT_EASYCOMM, 2)
	A macro that returns the model number of the EASYCOMM 2 backend.
#define	ROT_MODEL_EASYCOMM3 ROT_MAKE_MODEL(ROT_EASYCOMM, 4)
	A macro that returns the model number of the EASYCOMM 3 backend.
#define	ROT_FODTRACK 3
#define	ROT_BACKEND_FODTRACK "fodtrack"
#define	ROT_MODEL_FODTRACK ROT_MAKE_MODEL(ROT_FODTRACK, 1)
	A macro that returns the model number of FODTRACK.
#define	ROT_ROTOREZ 4
#define	ROT_BACKEND_ROTOREZ "rotorez"
#define	ROT_MODEL_ROTOREZ ROT_MAKE_MODEL(ROT_ROTOREZ, 1)
	A macro that returns the model number of ROTOREZ.
#define	ROT_MODEL_ROTORCARD ROT_MAKE_MODEL(ROT_ROTOREZ, 2)
	A macro that returns the model number of ROTORCARD.
#define	ROT_MODEL_DCU ROT_MAKE_MODEL(ROT_ROTOREZ, 3)
	A macro that returns the model number of DCU.
#define	ROT_MODEL_ERC ROT_MAKE_MODEL(ROT_ROTOREZ, 4)
	A macro that returns the model number of ERC.
#define	ROT_MODEL_RT21 ROT_MAKE_MODEL(ROT_ROTOREZ, 5)
	A macro that returns the model number of RT21.
#define	ROT_MODEL_YRC1 ROT_MAKE_MODEL(ROT_ROTOREZ, 6)
	A macro that returns the model number of YRC-1.
#define	ROT_MODEL_RT21 ROT_MAKE_MODEL(ROT_ROTOREZ, 5)
	A macro that returns the model number of RT21.
#define	ROT_SARTEK 5
#define	ROT_BACKEND_SARTEK "sartek"
#define	ROT_MODEL_SARTEK1 ROT_MAKE_MODEL(ROT_SARTEK, 1)
	A macro that returns the model number of SARTEK1.
#define	ROT_GS232A 6
#define	ROT_BACKEND_GS232A "gs232a"
#define	ROT_MODEL_GS232A ROT_MAKE_MODEL(ROT_GS232A, 1)
	A macro that returns the model number of GS232A.
#define	ROT_MODEL_GS232_GENERIC ROT_MAKE_MODEL(ROT_GS232A, 2) /* GENERIC */
	A macro that returns the model number of GS232_GENERIC.
#define	ROT_MODEL_GS232B ROT_MAKE_MODEL(ROT_GS232A, 3)
	A macro that returns the model number of GS232B.
#define	ROT_MODEL_F1TETRACKER ROT_MAKE_MODEL(ROT_GS232A, 4)
	A macro that returns the model number of F1TETRACKER.
#define	ROT_MODEL_GS23 ROT_MAKE_MODEL(ROT_GS232A, 5)
	A macro that returns the model number of GS23.
#define	ROT_MODEL_GS232 ROT_MAKE_MODEL(ROT_GS232A, 6) /* Not A or B */
	A macro that returns the model number of GS232.
#define	ROT_MODEL_LVB ROT_MAKE_MODEL(ROT_GS232A, 7)
	A macro that returns the model number of LVB.
#define	ROT_MODEL_ST2 ROT_MAKE_MODEL(ROT_GS232A, 8)
	A macro that returns the model number of ST2.
#define	ROT_MODEL_GS232A_AZ ROT_MAKE_MODEL(ROT_GS232A, 9)
	A macro that returns the model number of GS232A_AZ Azimuth.
#define	ROT_MODEL_GS232A_EL ROT_MAKE_MODEL(ROT_GS232A, 10)
	A macro that returns the model number of GS232A_EL Elevation.
#define	ROT_MODEL_GS232B_AZ ROT_MAKE_MODEL(ROT_GS232A, 11)
	A macro that returns the model number of GS232B_AZ Azimuth.
#define	ROT_MODEL_GS232B_EL ROT_MAKE_MODEL(ROT_GS232A, 12)
	A macro that returns the model number of GS232B_EL Elevation.
#define	ROT_MODEL_GS23_AZ ROT_MAKE_MODEL(ROT_GS232A, 13)
	A macro that returns the model number of GS23_AZ azimuth.
#define	ROT_MODEL_AF6SA_WRC ROT_MAKE_MODEL(ROT_GS232A, 14)
	A macro that returns the model number of AF6SA_WRC.
#define	ROT_KIT 7
#define	ROT_BACKEND_KIT "kit"
#define	ROT_MODEL_PCROTOR ROT_MAKE_MODEL(ROT_KIT, 1)
	A macro that returns the model number of PCROTOR.
#define	ROT_HEATHKIT 8
#define	ROT_BACKEND_HEATHKIT "heathkit"
#define	ROT_MODEL_HD1780 ROT_MAKE_MODEL(ROT_HEATHKIT, 1)
	A macro that returns the model number of HD1780.
#define	ROT_SPID 9
#define	ROT_BACKEND_SPID "spid"
#define	ROT_MODEL_SPID_ROT2PROG ROT_MAKE_MODEL(ROT_SPID, 1)
	A macro that returns the model number of ROT2PROG.
#define	ROT_MODEL_SPID_ROT1PROG ROT_MAKE_MODEL(ROT_SPID, 2)
	A macro that returns the model number of ROT1PROG.
#define	ROT_MODEL_SPID_MD01_ROT2PROG ROT_MAKE_MODEL(ROT_SPID, 3)
	A macro that returns the model number of SPID_MD01_ROT2PROG.
#define	ROT_M2 10
#define	ROT_BACKEND_M2 "m2"
#define	ROT_MODEL_RC2800 ROT_MAKE_MODEL(ROT_M2, 1)
	A macro that returns the model number of RC2800.
#define	ROT_MODEL_RC2800_EARLY_AZ ROT_MAKE_MODEL(ROT_M2, 2)
	A macro that returns the model number of RC2800_EARLY_AZ.
#define	ROT_MODEL_RC2800_EARLY_AZEL ROT_MAKE_MODEL(ROT_M2, 3)
	A macro that returns the model number of RC2800_EARLY_AZEL.
#define	ROT_ARS 11
#define	ROT_BACKEND_ARS "ars"
#define	ROT_MODEL_RCI_AZEL ROT_MAKE_MODEL(ROT_ARS, 1)
	A macro that returns the model number of RCI_AZEL.
#define	ROT_MODEL_RCI_AZ ROT_MAKE_MODEL(ROT_ARS, 2)
	A macro that returns the model number of RCI_AZ.
#define	ROT_AMSAT 12
#define	ROT_BACKEND_AMSAT "amsat"
#define	ROT_MODEL_IF100 ROT_MAKE_MODEL(ROT_AMSAT, 1)
	A macro that returns the model number of IF100.
#define	ROT_TS7400 13
#define	ROT_BACKEND_TS7400 "ts7400"
#define	ROT_MODEL_TS7400 ROT_MAKE_MODEL(ROT_TS7400, 1)
	A macro that returns the model number of TS7400.
#define	ROT_CELESTRON 14
#define	ROT_BACKEND_CELESTRON "celestron"
#define	ROT_MODEL_NEXSTAR ROT_MAKE_MODEL(ROT_CELESTRON, 1)
	A macro that returns the model number of NEXSTAR.
#define	ROT_ETHER6 15
#define	ROT_BACKEND_ETHER6 "ether6"
#define	ROT_MODEL_ETHER6 ROT_MAKE_MODEL(ROT_ETHER6, 1)
	A macro that returns the model number of ETHER6.
#define	ROT_CNCTRK 16
#define	ROT_BACKEND_CNCTRK "cnctrk"
#define	ROT_MODEL_CNCTRK ROT_MAKE_MODEL(ROT_CNCTRK, 1)
	A macro that returns the model number of CNCTRK.
#define	ROT_PROSISTEL 17
#define	ROT_BACKEND_PROSISTEL "prosistel"
#define	ROT_MODEL_PROSISTEL_D_AZ ROT_MAKE_MODEL(ROT_PROSISTEL, 1)
	A macro that returns the model number of PROSISTEL_D_AZ.
#define	ROT_MODEL_PROSISTEL_D_EL ROT_MAKE_MODEL(ROT_PROSISTEL, 2)
	A macro that returns the model number of PROSISTEL_D_EL.
#define	ROT_MODEL_PROSISTEL_COMBI_TRACK_AZEL ROT_MAKE_MODEL(ROT_PROSISTEL, 3)
	A macro that returns the model number of PROSISTEL_COMBI_TRACK_AZEL.
#define	ROT_MODEL_PROSISTEL_D_EL_CBOXAZ ROT_MAKE_MODEL(ROT_PROSISTEL, 4)
	A macro that returns the model number of PROSISTEL_D_EL_CBOXAZ.
#define	ROT_MEADE 18
#define	ROT_BACKEND_MEADE "meade"
#define	ROT_MODEL_MEADE ROT_MAKE_MODEL(ROT_MEADE, 1)
	A macro that returns the model number of MEADE.
#define	ROT_IOPTRON 19
#define	ROT_BACKEND_IOPTRON "ioptron"
#define	ROT_MODEL_IOPTRON ROT_MAKE_MODEL(ROT_IOPTRON, 1)
	A macro that returns the model number of IOPTRON.
#define	ROT_INDI 20
#define	ROT_BACKEND_INDI "indi"
#define	ROT_MODEL_INDI ROT_MAKE_MODEL(ROT_INDI, 1)
	A macro that returns the model number of INDI.
#define	ROT_SATEL 21
#define	ROT_BACKEND_SATEL "satel"
#define	ROT_MODEL_SATEL ROT_MAKE_MODEL(ROT_SATEL, 1)
	A macro that returns the model number of SATEL.
#define	ROT_RADANT 22
#define	ROT_BACKEND_RADANT "radant"
#define	ROT_MODEL_RADANT ROT_MAKE_MODEL(ROT_RADANT, 1)
	A macro that returns the model number of RADANT.
#define	ROT_ANDROIDSENSOR 23
#define	ROT_BACKEND_ANDROIDSENSOR "androidsensor"
#define	ROT_MODEL_ANDROIDSENSOR ROT_MAKE_MODEL(ROT_ANDROIDSENSOR, 1)
	A macro that returns the model number of ANDROIDSENSOR.
#define	ROT_GRBLTRK 24
#define	ROT_BACKEND_GRBLTRK "grbltrk"
#define	ROT_MODEL_GRBLTRK_SER ROT_MAKE_MODEL(ROT_GRBLTRK, 1)
	A macro that returns the model number of ROT_MODEL_GRBLTRK_SER.
#define	ROT_MODEL_GRBLTRK_NET ROT_MAKE_MODEL(ROT_GRBLTRK, 2)
	A macro that returns the model number of ROT_MODEL_GRBLTRK_NET.
#define	ROT_FLIR 25
#define	ROT_BACKEND_FLIR "flir"
#define	ROT_MODEL_FLIR ROT_MAKE_MODEL(ROT_FLIR, 1)
	A macro that returns the model number of FLIR.
#define	ROT_APEX 26
#define	ROT_BACKEND_APEX "apex"
#define	ROT_MODEL_APEX_SHARED_LOOP ROT_MAKE_MODEL(ROT_APEX, 1)
	A macro that returns the model number of APEX.
#define	ROT_SAEBRTRACK 27
#define	ROT_BACKEND_SAEBRTRACK "SAEBRTrack"
#define	ROT_MODEL_SAEBRTRACK ROT_MAKE_MODEL(ROT_SAEBRTRACK, 1)
	A macro that returns the model number of SAEBRTRACK.
#define	ROT_SKYWATCHER 28
#define	ROT_BACKEND_SKYWATCHER "SkyWatcher"
#define	ROT_MODEL_SKYWATCHER ROT_MAKE_MODEL(ROT_SKYWATCHER, 1)
	A macro that returns the model number of SKYWATCHER.

Typedefs
typedef int	rot_model_t
	Convenience type definition for a rotator model.

Detailed Description

Hamlib rotator model definitions.

This file contains rotator model definitions for the Hamlib rotator Application Programming Interface (API). Each distinct rotator type has a unique model number (ID) and is used by Hamlib to identify and distinguish between the different hardware drivers. The exact model numbers can be acquired using the macros in this file. To obtain a list of supported rotator branches, one can use the statically defined ROT_BACKEND_LIST macro (defined in configure.ac). To obtain a full list of supported rotators (including each model in every branch), the foreach_opened_rot() API function can be used.

The model number, or ID, is used to tell Hamlib which rotator the client wishes to use which is passed to the rot_init() API call.
